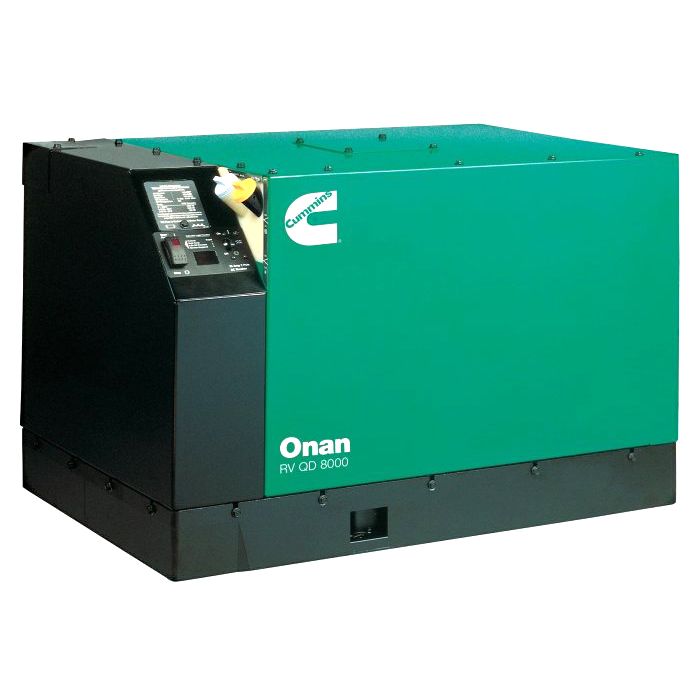

Cummins Onan QD 8000 Diesel Inverter RV Generator - 8.0HDKAK-1046, 8kW, Single-Phase, 120 Volt, Liquid-Cooled
The Cummins Onan 8.0 HDKAH exceeds National Park Service sound level requirements (60 dB(A) @ 50 ft) for use in national parks. The 8.0 HDKAH can run two 15000 Btu air conditioners with power to spare. With its high quality, pure sine wave electrical output. This generator helps prevent damage to appliances. Cummins backs this generator with a standard 3 year limited warranty.
Features
- Computer-controlled variable speed operation matches engine speed to load demand, minimizing noise level
- Easy maintenance with single-side service.
- Self-diagnostic capabilities simplify troubleshooting.
- Special sound-controlling housing encloses cooling system and muffler.
- 3-year limited warranty
Specifications
| Manufacturer |
Cummins |
| SKU |
8.0HDKAK-1046 |
| Model Number |
QD 8000 |
| Alternate Model Number |
A064K829 |
| Generator Grade |
Recreational |
| Generator Style |
Inverter Generator, RV Generator |
Engine Details
| Engine/Motor Brand |
Cummins |
| Fuel Type |
Diesel |
| Starting System |
Electric |
| Horsepower |
16.6 HP |
| Engine/Motor Type |
3-Cylinder, Vertical, Liquid-Cooled, In-Line |
| Displacement |
719 cc |
| Engine RPM |
1600-3200 RPM |
| Generator RPM |
1600-3200 RPM |
| Fuel Cons. @ 50% Ld |
0.5 |
| Fuel Cons. @ 100% Ld |
1.0 |
| Fuel Induction System |
Electronic Fuel Injection |
| Engine Governor |
Electronic |
| Operational Volume (dB @10ft) |
66.0 |
| Operational Volume (dB @50ft) |
60.0 |
| Muffler/Exhaust |
Enclosed |
| Altitude Affected |
Yes, Call For More Information |
Accessories
| Remote Panel |
Add At Checkout |
| Wire Harness |
Add At Checkout |
| Vibration Isolators |
Yes |
| Battery For Electric Start |
Not Included |
Warranty
| Warranty |
3 Year (Limited) |
Other Information
| Weight (Lbs.) |
420 |
| Ship Weight (Lbs.) |
460 |
| Operating Weight (Lbs.) |
420 |
| Free Shipping |
Yes |
| Dimension No Wheel Kit |
23.6"W x 36.3"L x 22.3"H |
| Agency Compliance |
CARB (California), EPA Tier 4 Final, National Park Approved |
| QSP |
2wk |
| Stk. Itm. |
Yes |
Generator Details
| Surge Start Watts |
8,000.0 |
| Continuous Rated Watts |
8,000.0 |
| Prime Rating Watts |
8,000 |
| Phase |
Single-Phase |
| Voltage |
120 |
| Rated Amps @ Min Volt (Commonly 120v) |
66.6 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Inverter |
| Voltage Regulation |
+/- 0.5% |
| Voltage Regulation Type |
Digital |
| Frequency Regulation |
Plus Or Minus 0.6 Percent |
| Circuit Breakers |
35 Amp |
| Insulation |
Class H |
