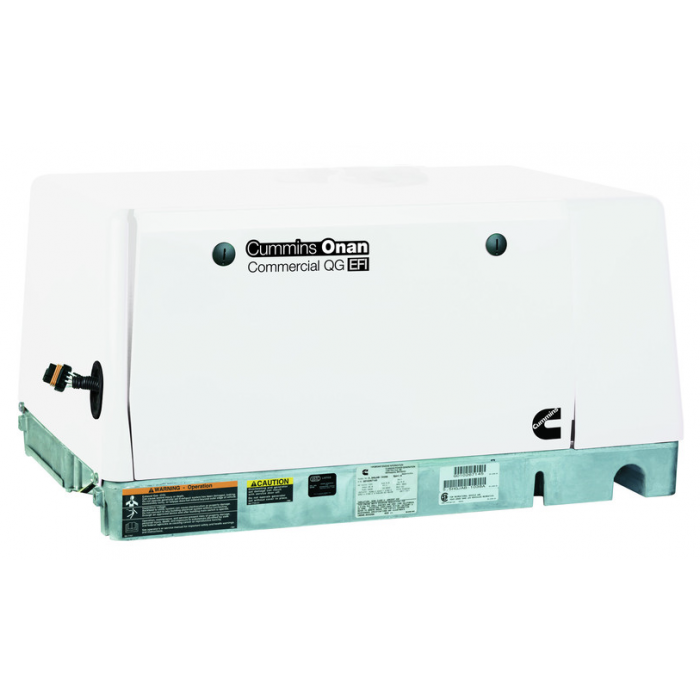

Cummins Onan QG 5500 Commercial Mobile Gasoline Generator - 5.5HGJAE-6757, 5.5kW Prime, Single-Phase, 120/240 Volt, Air-Cooled, EVAP
The Cummins Onan 5.5HGJAE is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.
Features
- EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- Integral USDA Forest Service-approved spark-arrestor muffler.
- Self-diagnostic capability to simplify troubleshooting.
- Completely enclosed with muffler, quick and easy to install.
- Sound-attenuated housing
- 2-year limited warranty
Specifications
| Manufacturer |
Cummins |
| SKU |
5.5HGJAE-6757 |
| Model Number |
QG 5500 |
| Alternate Model Number |
A063B613 |
| Generator Grade |
Commercial |
| Generator Style |
Commercial Mobile Generator |
Engine Details
| Engine/Motor Brand |
Cummins |
| Engine Model |
EH65V |
| Fuel Type |
Gasoline |
| Starting System |
Electric |
| Horsepower |
20.0 HP |
| Engine/Motor Type |
Air-Cooled, OHV, 90-degree V-twin |
| Displacement |
653 cc |
| Engine RPM |
2400 RPM |
| Generator RPM |
2400 RPM |
| Fuel Tank |
Add @ Checkout |
| Fuel Cons. @ 50% Ld |
0.6 |
| Fuel Cons. @ 100% Ld |
1.0 |
| Fuel Induction System |
Carburetor |
| Engine Governor |
Mechanical |
| Operational Volume (dB @10ft) |
69.0 |
| Auto Fuel Shut-Off Valve |
Yes |
| Muffler/Exhaust |
Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model |
Yes, generator is EVAP or evaporative emmissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system. |
| Altitude Affected |
Yes, Call For More Information |
Accessories
| Remote Panel |
Add At Checkout |
| Wire Harness |
Add At Checkout |
| Vibration Isolators |
Coil Spring |
| Battery For Electric Start |
Not Included |
Warranty
| Warranty |
2 Year (Limited) |
Other Information
| Weight (Lbs.) |
288 |
| Ship Weight (Lbs.) |
328 |
| Operating Weight (Lbs.) |
288 |
| Free Shipping |
Yes |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
EPA, National Park Approved |
| QSP |
2wk |
| Stk. Itm. |
Yes |
Generator Details
| Surge Start Watts |
5,500.0 |
| Continuous Rated Watts |
5,500.0 |
| Prime Rating Watts |
5,500 |
| Phase |
Single-Phase |
| Voltage |
120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) |
45.8 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) |
22.9 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Brush |
| Voltage Regulation |
1.7% |
| Voltage Regulation Type |
Digital |
| Circuit Breakers |
30 Amp |
| Insulation |
Class H |
