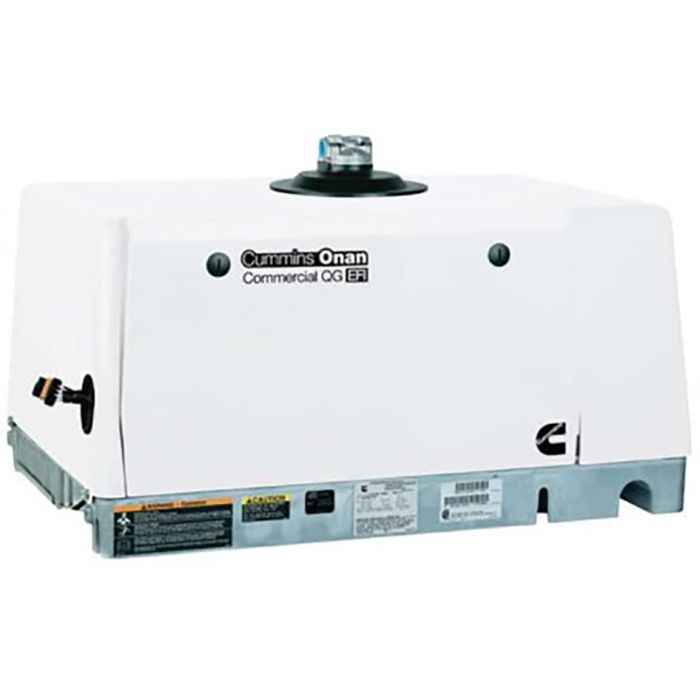

Cummins Onan QG 7000 EFI Gasoline Commercial Mobile Generator - 7.0HGJAD-2560, 7 kW Prime, Single-Phase, 120/240 Volt, Air-Cooled, Splined Shaft
The Cummins Onan 7.0HGJAD is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.
Features
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- EFI provides improved hot and cold start capability.
- Digital regulation for voltage stability as loads change.
- Completely enclosed with muffler, quick and easy to install.
- Electronic governor for voltage stability and frequency control.
- Splined Drive for Hydraulic Pump Operation (See Owners Manual for details)
- 2-year limited warranty
Specifications
| Manufacturer |
Cummins |
| SKU |
7.0HGJAD-2560 |
| Model Number |
QG 7000 |
| Generator Grade |
Commercial |
| Generator Style |
Commercial Mobile Generator |
Engine Details
| Engine/Motor Brand |
Cummins |
| Engine Model |
EH65V |
| Fuel Type |
Gasoline |
| Starting System |
Electric |
| Horsepower |
20.0 HP |
| Engine/Motor Type |
Air-Cooled, OHV, 90-degree V-twin, Electronic Fuel Injected |
| Displacement |
653 cc |
| Engine RPM |
2880 RPM |
| Generator RPM |
2880 RPM |
| Fuel Tank |
Add @ Checkout |
| Fuel Cons. @ 50% Ld |
0.7 |
| Fuel Cons. @ 100% Ld |
1.2 |
| Fuel Induction System |
Electronic Fuel Injection |
| Splined Shaft For Hydraulic Pump Operation |
Yes |
| Engine Governor |
Electronic |
| Operational Volume (dB @10ft) |
70.0 |
| Auto Fuel Shut-Off Valve |
Yes |
| Muffler/Exhaust |
Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model |
No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures. |
| Altitude Affected |
Yes, Call For More Information |
Accessories
| Remote Panel |
Add At Checkout |
| Wire Harness |
Add At Checkout |
| Vibration Isolators |
Coil Spring |
| Battery For Electric Start |
Not Included |
Warranty
| Warranty |
2 Year (Limited) |
Other Information
| Weight (Lbs.) |
288 |
| Ship Weight (Lbs.) |
339 |
| Operating Weight (Lbs.) |
288 |
| Free Shipping |
Yes |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
EPA, National Park Approved |
| QSP |
2wk |
| Stk. Itm. |
No |
Generator Details
| Surge Start Watts |
7,000.0 |
| Continuous Rated Watts |
7,000.0 |
| Prime Rating Watts |
7,000 |
| Phase |
Single-Phase |
| Voltage |
120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) |
58.3 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) |
29.1 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Brush |
| Voltage Regulation |
1.7% |
| Voltage Regulation Type |
Digital |
| Circuit Breakers |
30 Amp |
| Insulation |
Class H |
