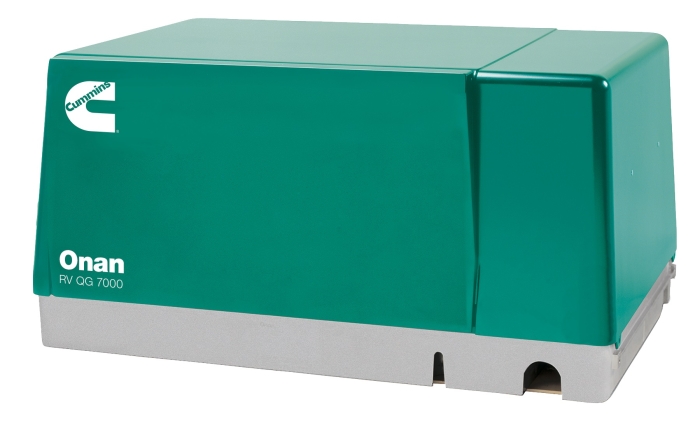

Cummins Onan QG 7000 Gasoline RV Generator - 7.0HGJAB-900, 7kW, Single-Phase, 120 Volt, Air-Cooled
The Cummins Onan 7.0 HGJAB features exceptionally low vibration levels and is the quietest in its class. The 7.0 HGJAB is capable of running up to two air conditioners with power to spare. Cummins backs this generator with a standard 3 year limited warranty.
Features
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- Easy maintenance with single-side service.
- Self diagnostics capability to simplify troubleshooting.
- Completely enclosed with muffler, quick and easy to install.
- Meets National Park Service sound level requirements (60 dB(A) @ 50 ft) for use in national parks.
- 3-year limited warranty
Specifications
| Manufacturer |
Cummins |
| SKU |
7.0HGJAB-900 |
| Model Number |
QG 7000 |
| Generator Grade |
Recreational |
| Generator Style |
RV Generator |
Engine Details
| Engine/Motor Brand |
Cummins |
| Engine Model |
EH65V |
| Fuel Type |
Gasoline |
| Starting System |
Electric |
| Horsepower |
20.0 HP |
| Engine/Motor Type |
Air-Cooled, OHV, 90-degree V-twin |
| Displacement |
653 cc |
| Engine RPM |
2880 RPM |
| Generator RPM |
2880 RPM |
| Fuel Cons. @ 50% Ld |
0.7 |
| Fuel Cons. @ 100% Ld |
1.2 |
| Fuel Induction System |
Carburetor |
| Low Oil Shutdown/Alert |
Yes |
| Auto Choke |
Yes |
| Lubrication System |
Full Pressure |
| Engine Governor |
Mechanical |
| Operational Volume (dB @10ft) |
70.0 |
| Operational Volume (dB @50ft) |
60.0 |
| Muffler/Exhaust |
Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model |
No, generator is NON-EVAP and is not evaporative emissions compliant. Your generator application/installation requires its own evaporative emissions standards compliance measures. |
| Altitude Affected |
Yes, Call For More Information |
Accessories
| Remote Panel |
Add At Checkout |
| Wire Harness |
Add At Checkout |
| Battery For Electric Start |
Not Included |
Warranty
| Warranty |
3 Year (Limited) |
Other Information
| Weight (Lbs.) |
299 |
| Ship Weight (Lbs.) |
349 |
| Operating Weight (Lbs.) |
299 |
| Free Shipping |
Yes |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
EPA, National Park Approved |
| QSP |
2wk |
| Stk. Itm. |
No |
Generator Details
| Surge Start Watts |
7,000.0 |
| Continuous Rated Watts |
7,000.0 |
| Prime Rating Watts |
7,000 |
| Phase |
Single-Phase |
| Voltage |
120 |
| Rated Amps @ Min Volt (Commonly 120v) |
58.3 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Brush |
| Voltage Regulation |
1.1% |
| Voltage Regulation Type |
Digital |
| Frequency Regulation |
< 5% |
| Circuit Breakers |
30 Amp/30 Amp |
| Insulation |
Class H |
