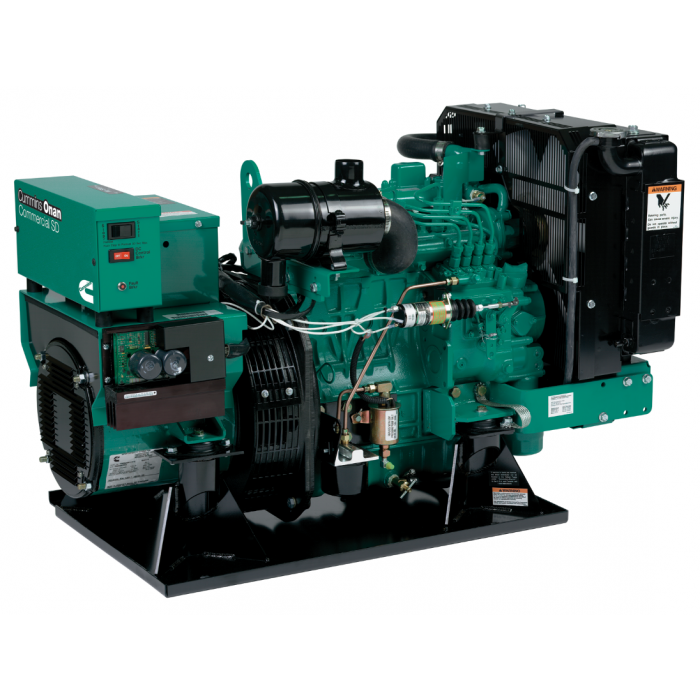

Cummins Onan SD 10000 Diesel Commercial Mobile Generator - 10.0HDKAG-61733, 10 kW Prime, 3-Phase, 120/208 Volt, Liquid-Cooled
The Cummins Onan Hydraulic Series of generators are designed as a fully-integrated power system that includes the hydraulic pump, motor generator, filtration system, oil cooler and reservoir in one complete, compact, and lightweight package. This unit gives you great installation flexibility with re-mountable 90° exhaust elbow, re-mountable DC control and two oil fill locations. Cummins Onan Hydraulic generators start under full load and run at the rated output, giving you all the power and performance you’re paying for. Cummins backs this generator with a standard 2 year limited warranty.
Features
- Liquid-cooled, single cylinder engine for reliable consistent power.
- Efficient and convenient operation monitoring and control.
- Tier 4 Final emissions compliance.
- User-friendly remote control option.li>
- Glow plugs for reliable all-weather starting.
- 2-year limited warranty
Specifications
| Manufacturer |
Cummins |
| SKU |
10.0HDKAG-61733 |
| Model Number |
SD 10000 |
| Alternate Model Number |
A060C029 |
| Generator Grade |
Commercial |
| Generator Style |
Commercial Mobile Generator |
Engine Details
| Engine/Motor Brand |
Kubota |
| Engine Model |
V1505 |
| Fuel Type |
Diesel |
| Starting System |
Electric |
| Horsepower |
22.3 HP |
| Engine/Motor Type |
4-Cylinder, Vertical, Liquid-Cooled, In-Line |
| Displacement |
1498 cc |
| Engine RPM |
1800 RPM |
| Generator RPM |
1800 RPM |
| Fuel Tank |
Add @ Checkout |
| Fuel Cons. @ 50% Ld |
0.6 |
| Fuel Cons. @ 100% Ld |
1.0 |
| Fuel Induction System |
Electronic Fuel Injection |
| Engine Governor |
Electronic |
| Operational Volume (dB @10ft) |
80.0 |
| Muffler/Exhaust |
Enclosed Spark-Arrestor |
| Altitude Affected |
Yes, Call For More Information |
Accessories
| Remote Panel |
Add At Checkout |
| Wire Harness |
Add At Checkout |
| Vibration Isolators |
Yes |
| Battery For Electric Start |
Not Included |
Warranty
| Warranty |
2 Year (Limited) |
Other Information
| Weight (Lbs.) |
520 |
| Ship Weight (Lbs.) |
560 |
| Operating Weight (Lbs.) |
520 |
| Free Shipping |
Yes |
| Dimension No Wheel Kit |
21.0"W x 40.5"L x 26.0"H |
| Agency Compliance |
CARB (California), EPA Tier 4 Final, National Park Approved |
| QSP |
4-10wk |
| Stk. Itm. |
No |
Generator Details
| Surge Start Watts |
10,000.0 |
| Continuous Rated Watts |
10,000.0 |
| Prime Rating Watts |
10,000 |
| Phase |
3-Phase |
| Voltage |
120, 208 3-Phase |
| Rated Amps @ 208 Volts (3-Phase) |
34.7 |
| Frequency |
60 Hz |
| Power Factor |
0.8 |
| Alternator |
Brush |
| Voltage Regulation |
Auto Voltage Regulation |
| Voltage Regulation Type |
Digital |
| Frequency Regulation |
+/- 1.0% |
| Insulation |
Class H |
