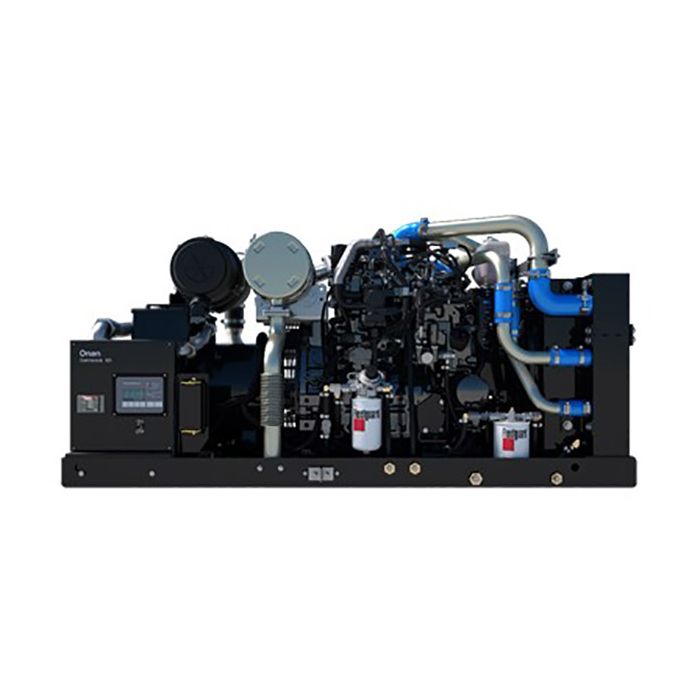

Cummins Onan SD 20000 Diesel Commercial Mobile Generator - 20HDKDB-02, 20kW Prime, 3-Phase, 120/208 Volt, Liquid-Cooled
Features
• Tier 4 emissions compliance without regeneration
• Tier 4 capabilities to monitor DEF level and manually activate or inhibit exhaust system cleaning
• Over 100 years of Cummins power generation technology and innovation
• Powerful 36 hp engine
• Total weight - 1035 lbs. (469 kg)
• Low vibration for smooth operation
• Cross-flow radiator provides increased cooling efficiency
• One-year (prime) and two-year (standby) base warranty supported by a worldwide Cummins twenty-four hour, seven days-a-week, distributor network
• Accepts 100% rated load in a single step
• Standard Power Command Control (PCC) 1300 technology provides digital (precise) frequency and voltage regulation
Specifications
| Manufacturer |
Cummins |
| SKU |
20HDKDB-02 |
| Model Number |
SD 20000 |
| Alternate Model Number |
A065Z421 |
| Generator Grade |
Commercial |
| Generator Style |
Commercial Mobile Generator |
Engine Details
| Engine/Motor Brand |
Kubota |
| Engine Model |
D1803-CR-TIE4BG |
| Fuel Type |
Diesel |
| Starting System |
Electric |
| Horsepower |
36.2 HP |
| Engine/Motor Type |
3-Cylinder, 4-Cycle, Vertical, Liquid-Cooled, In-Line |
| Displacement |
1498 cc |
| Engine RPM |
1800 RPM |
| Generator RPM |
1800 RPM |
| Fuel Tank |
Add @ Checkout |
| Fuel Cons. @ 50% Ld |
0.7 |
| Fuel Cons. @ 100% Ld |
1.4 |
| Fuel Induction System |
Electronic Fuel Injection |
| Engine Governor |
Electronic |
| Operational Volume (dB @10ft) |
79.0 |
| Altitude Affected |
Yes, Call For More Information |
Accessories
| Remote Panel |
Add At Checkout |
| Wire Harness |
Add At Checkout |
| Vibration Isolators |
Yes |
| Battery For Electric Start |
Not Included |
Warranty
| Warranty |
2 Year (Limited) |
Other Information
| Weight (Lbs.) |
1035 |
| Ship Weight (Lbs.) |
1450 |
| Operating Weight (Lbs.) |
1035 |
| Free Shipping |
Yes |
| Unit Dimensions |
25.7"W x 57.2"L x 28.2"H |
| Agency Compliance |
CARB (California), EPA Tier 4 Final |
| Stk. Itm. |
No |
Generator Details
| Surge Start Watts |
20,000.0 |
| Continuous Rated Watts |
20,000.0 |
| Prime Rating Watts |
20,000 |
| Phase |
3-Phase |
| Voltage |
120, 208 3-Phase |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) |
69.0 |
| Frequency |
60 Hz |
| Power Factor |
0.8 |
| Poles |
3 |
| Voltage Regulation |
+/- 0.5% |
| Frequency Regulation |
Plus Or Minus 0.5 Percent |
| Circuit Breakers |
100 Amp |
| Bearings |
Single-Bearing (for Close-Coupling to Engine) |
| Insulation |
Class H |
