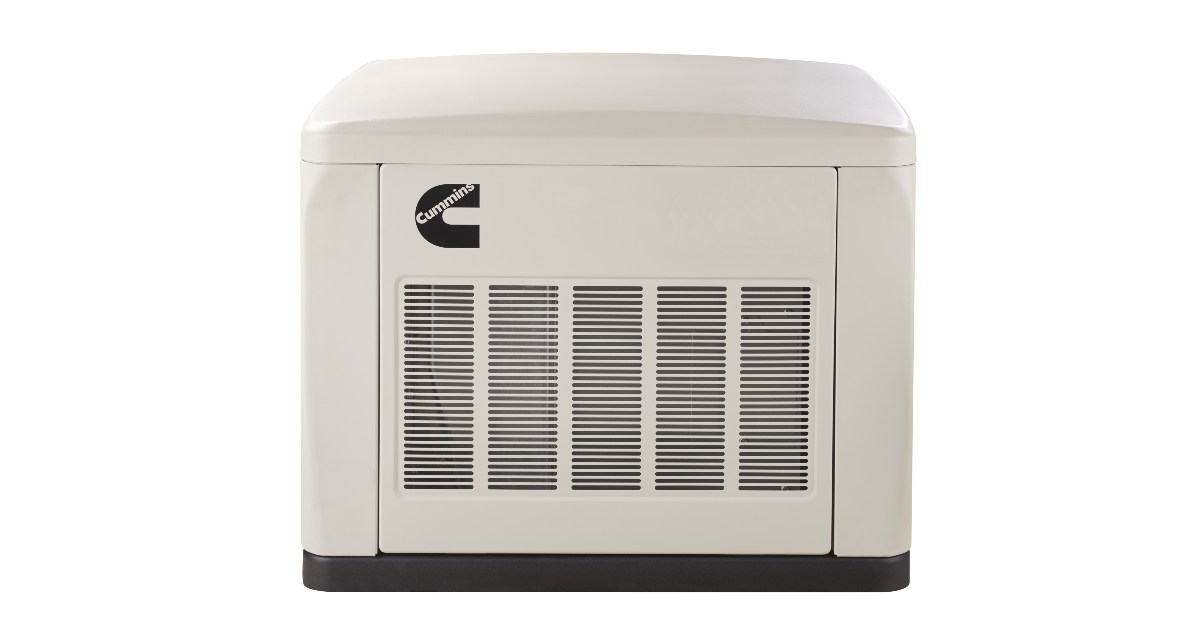

Cummins 17,000 Watt (17kW) Air-Cooled Quiet Connect Home Standby Generator LP/NG Extreme Cold Weather
Cummins RS17AE is the latest addition to the Cummins Quiet Connect Series Generators. Storms, hurricanes, tornadoes, and wildfires damage the power line. As a result power to millions of homes is lost. Cummins RS17AE will power your air conditioner and all home appliances when grid power fails. You can add as many as 4 loads to this model as it comes with an Intelligent Load Management System that constantly monitors the individual load requirements.
With higher power and torque, enhanced fuel efficiency and lower operating costs this model is just right for your home or shop or office use. Cummins RS17AE keeps the family and workplace safe by keeping the security systems running. This air-cooled model is affordable and you can continue to keep the food and beverages chilled in the event of a power failure. The family can stay comfortable indoors watching TV while the weather outside is bad.
If you get an automatic transfer switch for this 60Hz model, it will start automatically when grid power fails. This will eliminate the hassle of turning the unit on and off manually. Cummins is a preferred choice for home and small businesses due to its low cost, advanced capabilities, and safety features. All Cummins Quiet Connect Series Generators are designed, tested, and manufactured in the USA.
Engine | Natural gas/propane, Engine air cleaner, Synthetic engine oil, Oil drain extension tube, Low oil pressure shutdown |
Fuel System | Single fuel – natural gas or propane vapor, field selectable (Set to Natural gas from factory) |
Alternator | 60 Hz, 1 phase, < 5% THD, Long life electrographic DC brushes, Slip ring heater Control Display language – English, Under-hood built-in display |
Control | Display language – English, Under-hood built-in display |
Electrical | Single 100A circuit breaker, UL certified, Battery charging alternator, 4 Amp battery charger |
Cooling | Single direct drive blower |
Enclosure | Aluminum exterior, Galvanized steel interior, Withstands 180 mph wind loads (ASCE7-10) |
Code Compliance | UL 2200, CSA 22.2 and B149.1, EPA emissions, NFPA 37 – 18 inches |
Warranty | Base: 5 years / 2000 hours, Extended warranties available |
Generator Set Performance | Voltage regulation: ±1.25%, Steady state voltage variation: ±1.25%, Frequency regulation: Isochronous, Motor starting kVA: 40 (RS20A/AC), 34 (RS17A), 26 (RS13A), Steady state frequency variation: ±1.25% (±1.5% @ No load), Operating temperature: 122°F (50°C) to -40°F (-40°C) |
Model | QSJ999G |
Part number | A062E511 |
Design | Naturally aspirated, V-twin air-cooled |
Bore | 3.54 in (89.9 mm) |
Stroke | 3.09 in (78.5 mm) |
Displacement | 60.96 in³ (999 CC) |
Cylinder Block | Aluminum |
Battery Capacity | Group 51R, 450 CCA at 32°F (0°C) |
Starting Voltage | 12 Volt, negative ground |
Rated Speed | 3600 rpm |
Fuel Supply Pressure | Minimum: NG - 3.5 in H2O (0.87 kPa) / LP - 6.0 in H2O (1.49 kPa), Maximum: NG & LP - 12.0 in H2O (3.0 kPa) |
Size | Length: 34.1 in (865 mm), Width: 36.0 in (915 mm), Height: 27.3 in (694 mm) |
Sound | 65 dB(A) at 23 ft. (7 m) at normal load2 |
Voltage / Frequency | 120/240V / 60Hz |
Weight |
531 lbs/ 241kg |
Rated Power | 17 kW |
Rated amp3(NG / LPV) | 70.8 / 70.8 |
