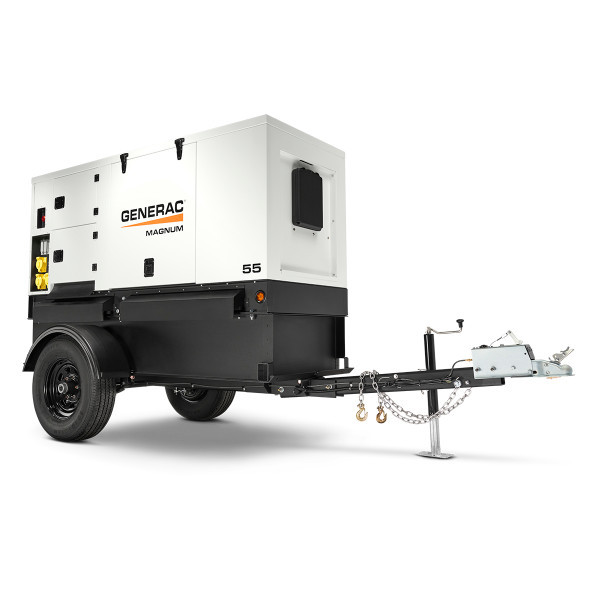

Generac 44kW (Prime)  48kW (Standby) Skid-Mount Diesel Generator (John Deere Engine) w Tandem-Axle Trailer

• Generac Mobile MMG55DF4 Skid-Mount Diesel Generator
• Designed & engineered for optimum performance & reliability
• Marathon Electric Brushless Alternator - Multi-Phase Output
• Three-Phase: 44 kW / 55 kVA (Prime), 48 kW / 60 kVA (Standby)
• Single-Phase: 42 kW / 42 kVA (Prime), 46 kW / 46 kVA (Standby)
• PM600 Voltage Regulator
• Provides Voltage regulation of +/- 0.5% for cleaner power
• 3-Position Voltage Selector Switch
• Single Phase - 120/240V Zig Zag, 3-Phase - 120/208V Low Wye & 3-Phase 277/480V High Wye
• 2.9L John Deere® Turbocharged, After-Cooled Diesel Engine (EPA Tier 4 Final)
• Fuel efficient design runs at 1800 RPM for extended engine life
• Rubber vibration dampers isolate engine/generator from frame for quieter operation
• 100-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
• Provides up to 24 hours of run time @ 100% load
• Deep Sea® Controller w/ 4-Line Back-lit LCD Text Display
• Push buttons for easy operation; Manual or Auto Start, Engine Start, Stop/Reset, Alarm Mute
• Scrolling Arrows for Diagnostic Information; Engine and Generator diagnostics
• *Please see spec sheet for additional controller information
• 9-Warning & Shutdown Alarms w/ 250-Event (Date/Time Stamp) History Log
• Provides safer operation by monitoring engine and generator systems
• 225A Main Breaker With Shunt Trip
• Lockable control box door w/ diagnostics window; Remote Start/Stop contacts located in lug box
• Lockable lug box with safety switch; Output ground connection lug inside lug box
• (2) 120V 20A GFCI Duplex Outlets (5-20R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
• Individually breakered for added safety during operation
• Sound Attenuated Aluminum Enclosure - 68 dB(A) @ 23' (Prime Power)
• Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
• Fully-lockable (enclosure & fuel fill), insulated & baffled w/ central lifting point
• External Emergency Stop Switch; Multi-lingual operating/safety decals
• CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
• 2-Year / 2,000 Hour Limited Warranty
• Includes Generac Tandem-Axle Trailer
• For MMG55IF Skid-Mount Diesel Generators
• DOT Approved Tubular Steel Trailer w/ 2" Ball Hitch
• Transportation tie downs, Safety chains w/ spring-loaded hooks
• LED Tail, Side, Brake & Directional Lights
• 15" Tires and polyethylene fenders
Product Includes
• (1) Generac 44kW (Prime) / 48kW (Standby) Skid-Mount Diesel Generator w/ John Deere Engine (MMG55DF4)
• (1) Generac Tandem-Axle Trailer For MMG55DF4 Skid-Mount Diesel Generator (MTG55T)

SPECIFICATIONS

Product Specs

Voltage

Voltage Selector Switch

Frequency

60 Hertz

Alternator

Brushless

Auto Voltage Regulation

Yes

Rated Watts

44000 Watts

Surge Watts

48000 Watts

Fuel Type

Diesel

Tank Size

100 Gallons

Fuel Tank Material

Plastic

Fuel Gauge

Yes

Decibel Rating @ 7m

68

Idle Control

Yes

Hour Meter

Yes

Voltage Meter

Yes

Lifting Eye

Yes

Battery

Included

Circuit Breaker Size

225 Amps

Grade Type

Professional
