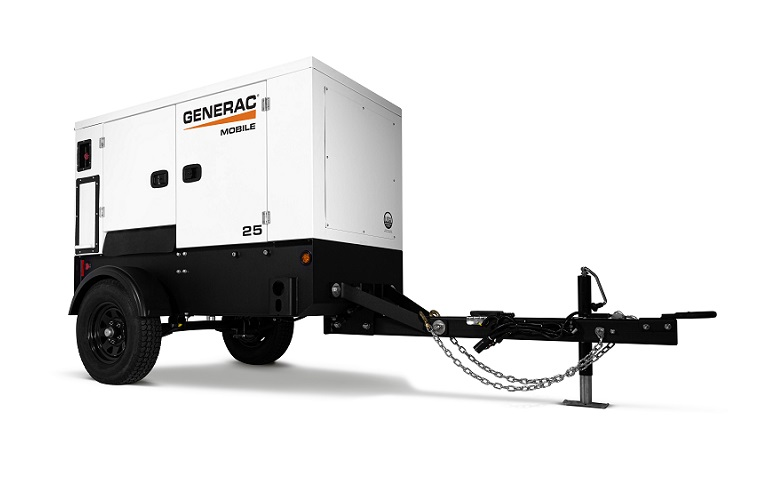

Generac MDG25IF4 20kW Towable Mobile Diesel Generator with Isuzu Engine
The Generac Magnum MMG25IF4 mobile diesel generator from Generac Mobile provides three-phase 25kVA prime power in a compact cabinet. The new cabinet design enables maximum space and transport efficiency while making the generator easy to maneuver and tow. The Final Tier 4 Isuzu engine is reliable and easy to maintain, requiring no diesel particulate filter (DPF). Standard safety features enhance safety and security on the job.
FEATURES:
- Isuzu 4LE2T - turbocharged, diesel engine
- Polyethylene fuel tank
- Marathon Electric, Brushless, 4 pole generator with Class H insulation
- 3 position selector switch
- Single phase – 120 / 240V Zig Zag
- 25 kW / 25 kVA – standby, 20 kW / 20 kVA – prime
- Three phase – 120 / 208V Low Wye
- 25 kW / 31 kVA – standby, 20 kW / 25 kVA – prime
- Three phase – 277 / 480V High Wye
- 25 kW / 31 kVA – standby, 20 kW / 25 kVA – prime
- Power Zone controller and display
- Push Buttons For Easy Operation
- 125A main breaker with shunt trip
- Convenience receptacles with individual breakers (restricted use in high wye mode)
- (2) 120V 20 Amp GFCI duplex outlets – (NEMA 5-20R type)
- (3) 125 / 250V 50 Amp, 3 pole, 4 wire Twistlock (Non-NEMA 6369)
- Fully lockable, stainless steel sound attenuated enclosure
- DOT approved trailer
Product
| Manufacturer |
Generac |
| SKU |
MDG25IF4 |
| Model Number |
MDG25IF4 |
| Generator Grade |
Commercial, Emergency, Industrial, Professional, Semi-Professional |
| Generator Style |
Emergency Standby Generator, Portable Generator, Skid Mounted Generator, Towable Generator |
| Special Features |
1800 RPM, 3-Phase, 50 Amp Plug, Brushless Alternator, Liquid Cooled |
Engine Details
| Engine/Motor Brand |
Isuzu |
| Engine Model |
4LE2TAGV08 |
| Fuel Type |
Diesel |
| Starting System |
Electric |
| Horsepower |
40.2 HP |
| Engine/Motor Type |
4-Cylinder, Liquid-Cooled, Turbo-Charged W/After Cooler, 2.2L |
| Engine RPM |
1800 RPM |
| Generator RPM |
1800 RPM |
| Fuel Capacity |
62.00 Gallons |
| Run Time @ 75% Ld (Hrs) |
35 Hours |
| Fuel Gauge |
Included |
| Enclosure |
Steel |
| Fuel Tank Material |
Plastic |
| Operational Volume (dB @23ft) |
67.0 |
| Altitude Affected |
Yes, Call For More Information |
Warranty
| Engine Warranty |
2 Years Or 2000 Hours |
| Generator Warranty |
2 Years Or 2000 Hours |
Other Information
| Weight (Lbs.) |
2247 |
| Ship Weight (Lbs.) |
2447 |
| Operating Weight (Lbs.) |
2771 |
| Dimension No Wheel Kit |
76.0"L x 36.37"W x 53.5"H |
| Dimension W/Wheel Kit |
139.25"L x 51.75"W x 64.75"H |
| Agency Compliance |
CARB (California), CSA (Canada), EPA, EPA Tier 4 Final, UL 2200 |
| Stk. Itm. |
No |
Generator Details
| Surge Start Watts |
25,000.0 |
| Continuous Rated Watts |
20,000.0 |
| Prime Rating Watts |
20,000 |
| Standby Rating Watts |
25,000 |
| Phase |
Single-Phase, 3-Phase, Simultaneous 1 & 3 Phase (Limited), Switchable Phase (& Voltage) |
| Phase & Voltage Selection |
3-Position Phase & Voltage Selector Switch |
| Voltage |
120, 240 1-Phase, 208, 240, 480 3-Phase, Switchable |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) |
73.0 |
| Rated Amps @ 208 Volts (3-Phase) |
86.0 |
| Rated Amps @ 240 Volts (3-Phase) |
75.0 |
| Rated Amps @ 480 Volts (3-Phase) |
37.0 |
| Frequency |
60 Hz |
| Voltage Regulation |
+/- 0.5% |
| Circuit Breakers |
125 Amp |
