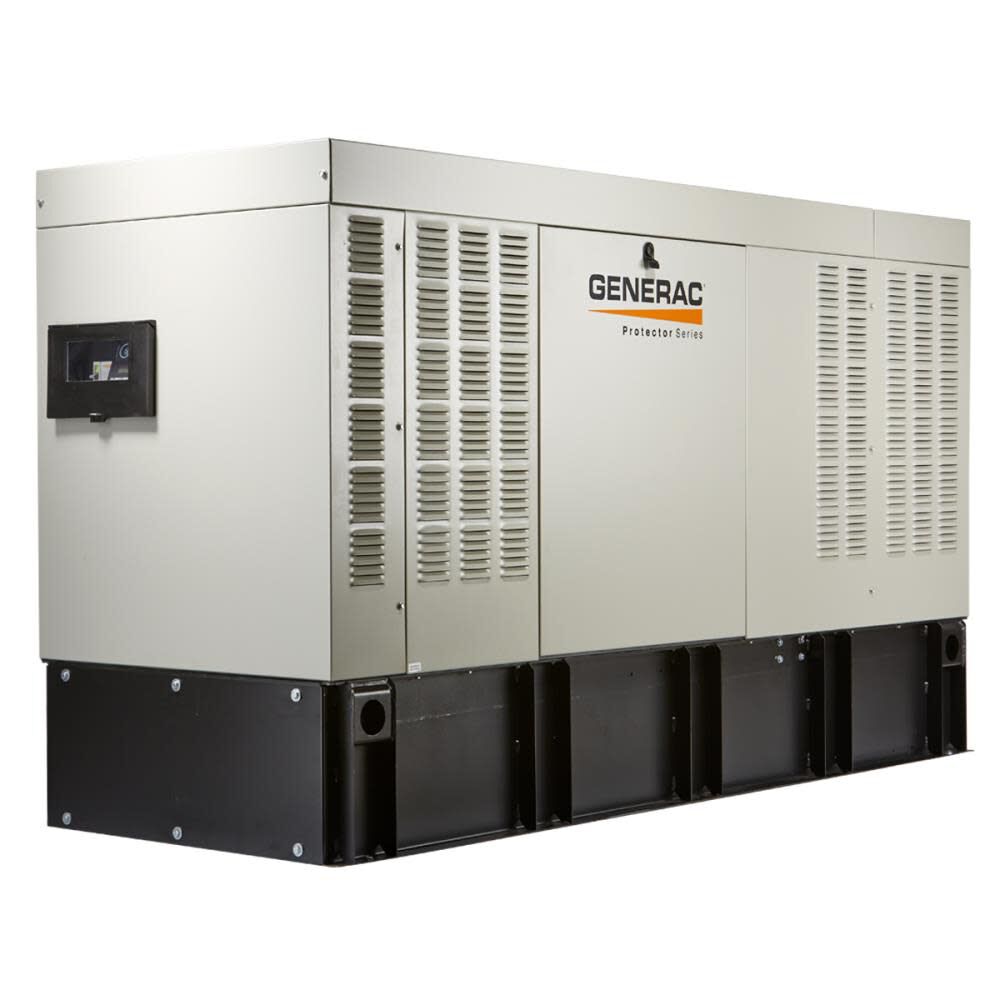

Generac Protector Series 50,000 Watt (50kW) 277/480-Volts 3-Phase Liquid Cooled Diesel Standby Generator 50-State

The 277/480-Volt Generac 50kW Generator Protector Diesel restores power during an outage for all the conveniences and necessities of modern living and work life. Seconds after an outage hits, the 50kW generator system starts and restores power to the business for refrigeration, heating and cooling, office equipment, pumps, and lighting. With a 50kW Generator, your business operates as usual through a power outage.

An integrated 57-Gallon Tank Provides up to 28 hours of run time.

Generac guarantees its Protector Series with a five-year limited warranty.

Code Ready 50 kW Generator

“Code Ready” features and optional accessories eliminate the lengthy configuration process to make local code compliance easy and straightforward.

Be Sure to Review the Pre-Order Checklist located in the documents.

Code Ready Accessories include the UL/CUL-142 listed, externally vented and filled double-walled tank, an emergency stop, and fuel cut off, a fuel spill and recovery system, locking fuel caps, and low-fuel alarms, among other Code Ready Accessories.

50kW Generac Generator Diesel Engine

The 50kW Generator comes equipped with a liquid-cooled, turbocharged Mitsubishi 3.3-liter OHV in-line, four-cylinder diesel engine with cast iron cylinder heads and aluminum pistons. It features built-in protection from high engine or oil temperature, low oil pressure, and over-crank/over-speed conditions with engine shutdown to prevent damage and issue alerts for maintenance. The engine operates at 1800 RPM.

Generac 50kW Generator Controls

The Evolution Controller manages all aspects of the Generac 50 kW Generator operation. It has a two-line, multi-lingual display with a back-lit, membrane keypad that displays generator status at glance with colored LEDs and provides access to the Evolution's reports and alerts and allows programming of exercise periods and maintenance scheduling.

Protector Series Generators come equipped with Mobile Link Connectivity. Monitor generator status from anywhere with a smartphone, tablet, laptop, or PC. Access status and maintenance alerts. Connect with authorized service dealers for fast, proactive service.

Eliminate trips outside to check the display with an optional Basic or Advanced wireless monitor. View generator status with the basic model, or step up and add reports, alerts, and programming functions with the advanced model.

EPA/CA/MA Emissions Compliant

Features:

• Generac Protector® Series Diesel Standby Generator
  • For light commercial applications with 277/480V 3-Phase service
• Fully Automatic Operation When Paired with Generac ATS
  • Generator is only compatible with Generac Auto Transfer Switches
• Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection
• Mitsubishi 3.3L In-Line Turbocharged 4-Cylinder Diesel Engine
  • Fuel efficient design runs at 1800 RPM for long engine life
• Integrated 57-Gallon Double-Wall Base Fuel Tank
  • Provides up to 28 hours of run time @ 1/2 load
• Two-Line LCD Evolution Controller
  • Easy viewing, monitoring and management of generator functions
• Quiet Test
  • Runs at a lower RPM, is quieter and consumes less fuel
• Isochronous Electronic Governor Control
  • Precise load response and voltage/frequency regulation (±1%)
• Corrosion-Resistant Aluminum Enclosure
  • Enhanced durability, ideal for coastal and salt-water environments
  • Sound dampening design limits sound pressure to a low 70dB(A)
• Code Ready - Compatibility With A Variety Of Environments
  • External vent and fill, UL/CUL 142-Listed double wall based tank
• UL/CUL 2200-Listed Generator
• 5-Year Limited Warranty

Overview:

• Product Category: Home Standby Generator
• Generator Features:
  • Automatic Voltage Regulation
  • Low Oil Alert/Shutdown
• Product Weight: 2215 lbs
• Length: 95"
• Width: 35"
• Height: 57"

Specifications:

• Voltage: 277, 480V
• Frequency: 60 Hz
• Running Wattage: 50,000 Watts
• Fuel Type: Diesel
• Amperage: 75A
• Decibel Rating @ 7m: 70 dbA
• Enclosure Material: Aluminum
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled
• Wi-Fi: Yes

Engine:

• Engine Brand: Mitsubishi
• Starting System: 12v Auto Start
• Cubic Capacity: 3300 CC
• Horsepower: 85 HP
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• EPA Compliant
• Made in America
• Approved for Commercial Use
• Warranty: 5 Year Commercial, 5 Year Commercial Engine, 5 Year Residential, and 5 Year Residential Engine
