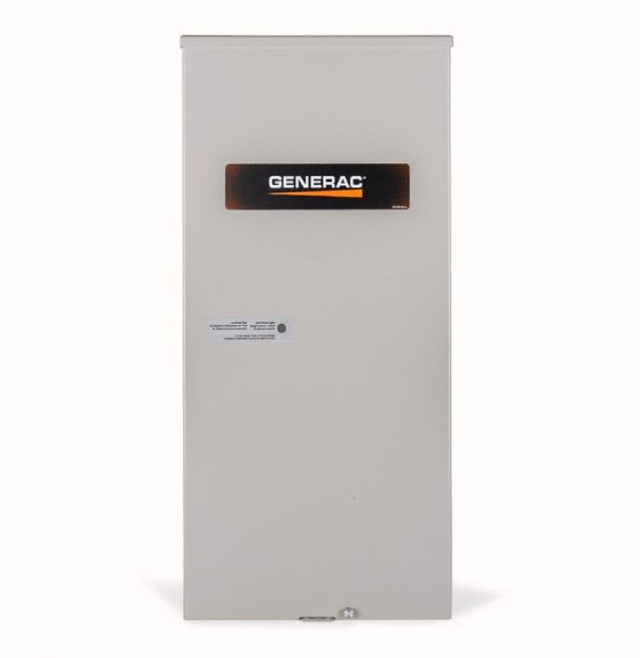

Generac RXSW100A3SPD 100 Amp NEMA 3R Automatic Transfer Switch with Surge Protection Device

  • Image 1
  • Image 2
Price:
US $240.71
SKU:
RXSW100A3SPD
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Generac RXSW100A3SPD 100 Amp NEMA 3R Automatic Transfer Switch with Surge Protection Device

100 Amp Single Phase 120/240 Volts |  Whole House Switch   |  Indoor/Outdoor NEMA 3R  |   UL 1449  |   Made in the USA

Generac 100 Amp Automatic Transfer Switch with built in Surge Protection Device (SPD). Meets the new NEC Requirement 2020/2023 Article 230.67 for a Surge Protection Device.

The Generac 100 Amp SE Rated ATS is a whole house switch for connecting a standby generator to the main service panel. Every home standby generator system requires an automatic transfer switch. When an outage strikes, the generator starts within seconds and signals the transfer switch. The transfer switch disconnects the utility from the home's electrical system before it connects the generator. When the utility restores power, the system switches back to utility power and the generator shuts down.

The Surge Protection Device meets requirements for Type 1 and Type 2 installations.

Generac Whole House Transfer Switch

The 100 Amp Generac Whole House Transfer Switch has an indoor/outdoor rated NEMA 3R Aluminum enclosure. It can manage up to 4 HVAC loads without additional hardware. Smart Management Modules extend the capability to manage up to 8 additional loads-one of the most installation efficient power management options available.

  • Compatible with Generac Single Phase Generators with an Evolution or Nexus Controller.
  • Tested and listed for safe, reliable performance.
  • UL Listed-UL-1449
  • USA Engineered and Built
  • Generac 50-Amp Smart Management Module (sold separately)
  • Generac 100-Amp Smart Management Module (sold separately)

The RXSW100A3SPD Automatic Transfer Switch includes a Generac 5-Year Limited Warranty

Specifications

Model

Model Number RXSW100A3SPD

Manufacturer Generac Power Systems

Made In USA Yes

Voltage 120/240 Volts Single Phase

Enclosure NEMA 3R Indoor/Outdoor

UL Listed UL-1449

Type Automatic Transfer Switch

Transfer Switch Model RXSW100A3SPD

Features

Weight 22.5 lbs

Dimensions 14.6W x 20.0H x 7.1D inches

Warranty Information

Consumer Warranty Generac 5-Year Limited Warranty

Commercial Warranty Generac 5-Year Limited Warranty

Fuel

Fuel Gauge No

Transfer Switches

Transfer Switch Model RXSW100A3SPD

Transfer Switch Amps 100 Amps

Transfer Switch Circuits Whole House Switch

Ats Poles 2 Pole

Transfer Switch Weight 22.5 lbs
