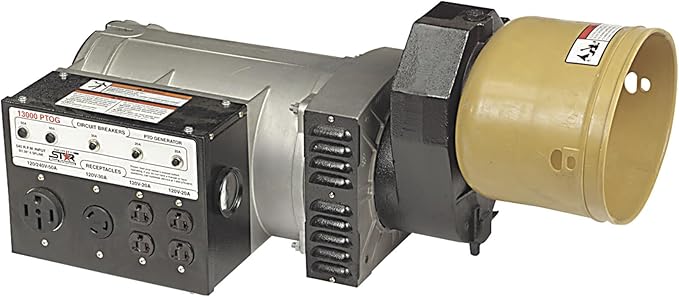

NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required

NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required

Price:

US $571.00

Brand:

NorthStar

Condition:

New

Availability:

In Stock

Product Description

NorthStar PTO Generator, 13,000 Surge Watts, 12,000 Rated Watts, 24 HP Required

NorthStar Single-Phase PTO Generator cranks out 100 Amps @ 120V, 50 Amps @ 240V. Requires 24 PTO HP or more for rated output: 13,000 surge Watts and 12,000 continuous Watts.

Features

Industry standard 1-3/8in., 6-spline input shaft geared for 540 RPM
100% copper windings, metal construction, 100 Amp thermal magnetic breaker and plastic shield provide high performance, durability, long life and safe operation
Outlets include welding receptacle and (4) 120V, 20 Amp receptacles and voltmeter
Pushbutton reset circuit breakers
(4) 20 Amp, 120V receptacles
(1) 30 Amp, 120V receptacle
(1) 50 Amp, 240V receptacle
Use with PTO driveline (not included)

What's Included

(1) Generator

Key Specifications

Ship Weight	125.0 LB
Required Horsepower	24
Surge Watts	13,000
Rated Watts	12,000
Receptacles (qty.)	6
Shaft Diameter	1-3/8 in
Continuous Run Time	Yes
PTO Input Speed	540 rpm
Dimensions L x W x H (in.)	35 1/2 x 22 x 17

Technical Details

Manufacturer	‎NorthStar
Part Number	‎171310
Item Weight	‎125 pounds
Package Dimensions	‎35.5 x 22.7 x 17.1 inches
Item model number	‎165929
Size	‎12
Color	‎Brown
Power Source	‎Fuel Powered
Voltage	‎120 Volts
Wattage	‎13000 watts
Item Package Quantity	‎1
Special Features	‎Durability
