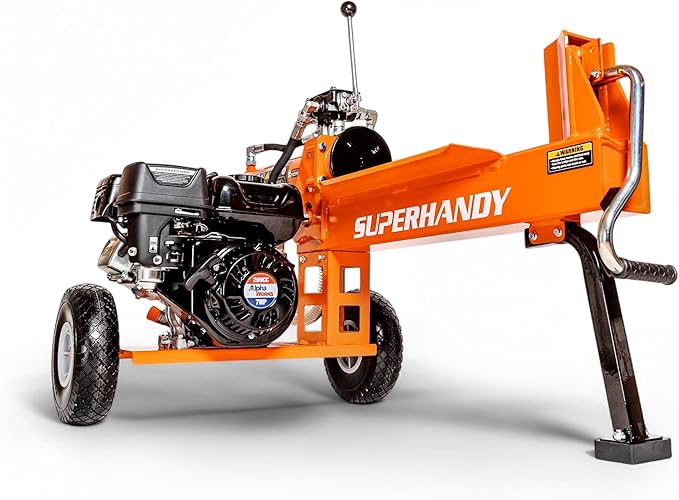

Loading... Please wait...SuperHandy GUO077 Portable 20 Ton Gas Powered Log Splitter
Built with a heavy duty 7HP gas motor, powering our 20-ton rated system, utilizes the highly ultra reliable and trusted 2-Stage Bucher Hydraulic Gear Pump. With Rapid Auto Return that easily splits logs up to 20.5" inches in length and up to 16" inches in diameter; All weighing 130lbs.
Our lightweight horizontal full beam and steel wedge log splitter design is built to be portable with fast and easy set up for anywhere nature takes you; Complete with 10” inch Sturdy transport wheels, allowing for smooth maneuvering for easy transportation from site to site.
| Engine Oil Guide | SAE 15W-40 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range. |
| Fuel Type | 87 octane gasoline with NO ethanol content NOTE |
| Fuel Tank Capacity | 0.74 Gallon (approx. 2.8L) |
| Wheel Diameter | 10" |
| Net Weight | 132 LB |
| Overall Dimensions(L x W x H) | 46.38" x 25.59" x 34.05"(Assembled) |
| Low Oil Shut-off | Yes |
| Emissions | EPA/CARB |
| Maximum Exerted Splitting Force | 20 (US tons) |
| Engine Specifications | 7.0HP / 209CC |
| Starter Type | Recoil Start |
| Cycle Time | 7.5 Seconds |
| Gear Pump | 11 GPM |
| Control Valve | Detent (auto-return) |
| Max. Pressure | 3000 PSI(21Mpa) |
| Hydraulic Cylinder | 3.5" |
| Hydraulic Cylinder Stroke Length | 16" |
| Max Log Length | 20.5" |
| Max Log Width | 16" |
| Hydraulic Fluid Type | AW32, AW46 |
| Hydraulic Fluid Tank Capacity | 1.6 Gallon (6L) |
| Engine Oil Capacity | 0.145Gallon (0.55L) |
