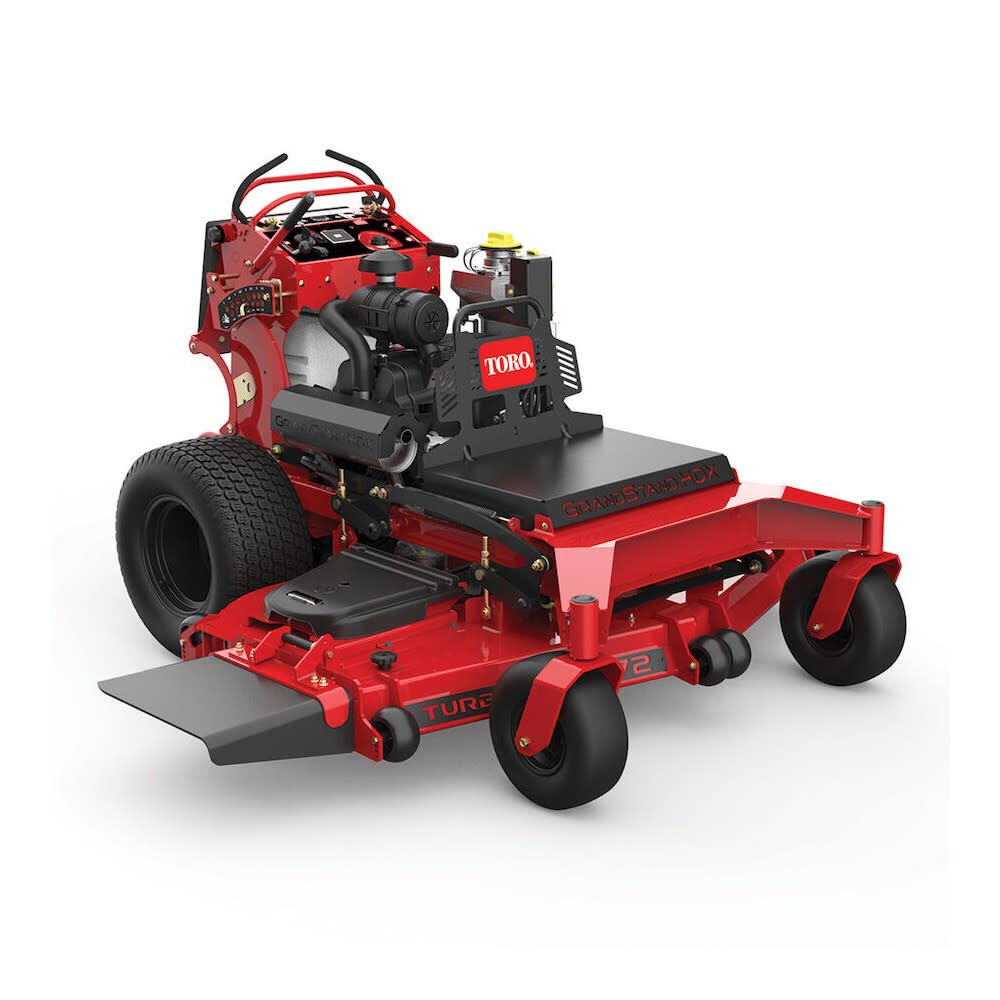

Loading... Please wait...The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower. Bumpy patches and challenging terrain are all in a day's work- but feeling them doesn't need to be. GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a walk-behind for speed and maneuverability. Improve productivity with easy access on and off the machine-up to 10.5 gallons of fuel capacity on 48 In., 52 In., 60 In. and 72 In. models-to mow longer with fewer stops. Save maintenance and time with no hydraulic hoses, no daily/weekly grease points and a new engine design that allows extra room for service access. The fuel tank can also be removed without draining for easy service access to the transmission and controls.
Specifications:
| Adjustable Discharge Baffle | Standard, Tools-Free |
|---|---|
| Air Filter | Heavy-Duty Canister Air Cleaner |
| Anti Scalp Wheels | Standard |
| Blade Design | 0.204 in. / 0.518 cm |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Foldable Operator Platform with Suspension |
| Cutting Width | 60 in / 152 cm |
| Deck Design | 7-gauge 60″ (152 cm) TURBO FORCE® 2 w/bull-nose bumper |
| Discharge Chute | Rubber |
| Drive System | Tuff Torq TZT13s 13cc IHTs |
| Drive Tires | 24 in. x 12 in. – 12 in. (61 cm x 30.5 cm – 30.5 cm) |
| Engine | 37 hp Briggs & Stratton Vanguard 993 cc EFI |
| Engine Brand | Briggs and Stratton |
| Engine Displacement (cc) | 993 cc |
| Engine Horsepower | 37 hp |
| Forward Ground/Transport Speed | Up to 12.0 mph / 19.3 kph |
| Fuel Capacity | 10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm in 0.25 in (0.64 cm) increments |
| Hour Meter | Standard Hour Meter |
| Number of Blades | 3 |
| Product Type | Stand-On Mowers |
| Product Use | Commercial |
| Reverse Ground/Transport Speed | Up to 5.0 mph / 8.0 kph |
| Spindle Bearings | Greaseless Ball Bearings |
| Spindle Housing | 9 in / 22.9 cm Diameter Cast Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
