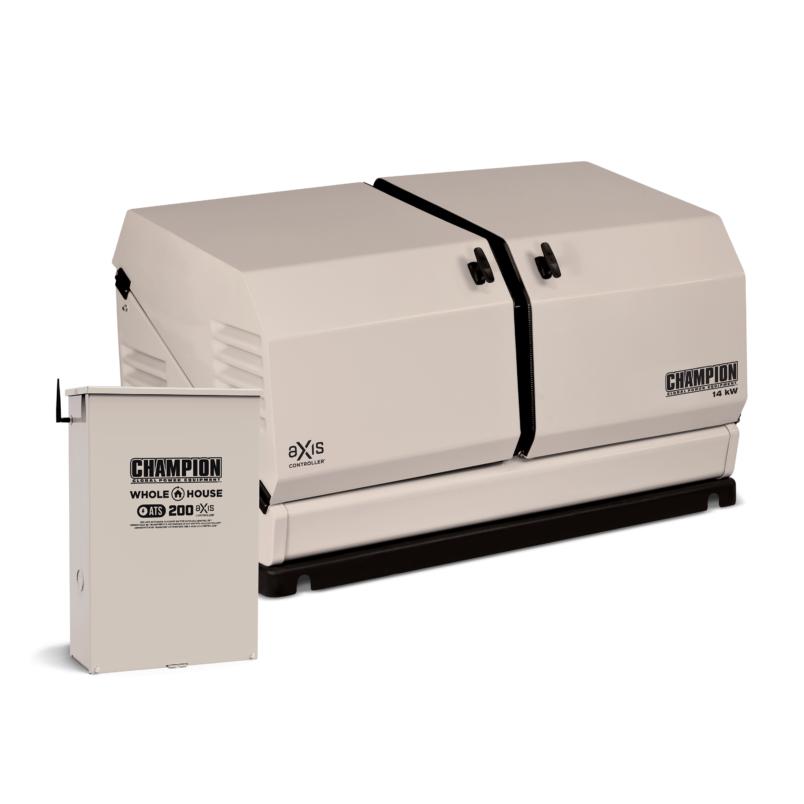

Loading... Please wait...Champion 100837 14kW aXis Home Standby Generator with 200A SE Transfer Switch
Champion 100837 14kW Home Standby Generator is a programmable, upgradable home standby system designed for whole-house coverage. With this model you do not have to worry about adding or removing more loads. The aXis load management system manages all your large and small loads efficiently. Now you can use a smaller generator to run the whole house. It automatically continues to supply power to your 5-ton air conditioner, refrigerator, freezer, security system, microwave, and other home appliances in the event of a power failure. When grid power returns the automatic transfer switch will instruct the generator to stop running.
This air-cooled home standby generator needs no refueling. Run it on propane or natural gas for hours at no end. It keeps both the shop and home safe during a blackout caused by wildfires, hurricanes, tornadoes, and storms. With a Champion 14kW aXisgenerator installed at home the day will run as usual. Keep the foods fresh in the refrigerator, work on your computer or laptop, and keep the alarm system armed. This model is easy to operate and maintain.
The best thing about this air-cooled gas model is its enhanced fuel efficiency. As compared to its competitors it offers 13% more fuel economy. It will run a 5-ton air conditioner along with all home appliances efficiently. The clean high-quality power it generates protects all home appliances.
The Champion 100837 14kW runs as quietly as an air conditioner at 62dBA without disturbing your sleep. With its 24-volt starting system, it is perfect for use in extreme climates where temperatures can range from -22°F to 104°F. Affordable cost, high performance, Wi-Fi functionality, less than 5% THD, sound attenuation features, and a 10-year warranty makes Champion 14kW Home Standby Generators a number one choice for smart homeowners.
| Propane Rated Watts | 14000W |
|---|---|
| Natural Gas Rated Watts | 12500W |
| Propane Rated Amps at 120V | 116.7A |
| Propane Rated Amps at 240V | 58.3A |
| Natural Gas Rated Amps at 120V | 104A |
| Natural Gas Rated Amps at 240V | 52A |
| Rated Volts | 120/240 |
| Rated Frequency | 60Hz |
| Phase | Single |
| Propane Fuel Consumption at 1/2 Load | 1.6gal/h |
| Propane Fuel Consumption at Full load | 2.6 gal/h |
| Natural Gas Fuel Consumption at 1/2 Load | 116.5 ft3/h |
| Natural Gas Fuel Consumption at Full Load | 180.1 ft3/h |
| Main Line Circuit Breaker | 65A |
| Starting System | Automatic 24V |
| Operational Volume | 62 dBA |
| Cooling System | Air Cooled |
| AC Ton Rating | 5T |
| Generator Enclosure | Steel |
| Generator Mounting Pad | Composite |
| Engine Brand | Champion |
| Engine Size | 754cc |
| Engine Speed | 3600 |
| Engine Type | 4-stroke |
| Fuel Type | Propane (LPG), Natural Gas (NG) |
| Engine Oil Type | 5W-30 Full Synthetic |
| Engine Oil Capacity | 1 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| ETL Listing | ETLus |
| EPA Certified | Yes |
| Switch Type | Whole House |
| Switch Amps | 200A |
| Switch Volts | 120/240 |
| Switch Circuits | Whole Service |
| Switch Poles | 2 |
| Response Time | Adjustable (0.5-30 sec.) |
| Load Management | Yes |
| Service Entry Rated | Yes |
| Switch Enclosure | NEMA 3R |
| Length | 49 in. |
|---|---|
| Width | 28 in. |
| Height | 28 in. |
| Weight | 439 lb. |
