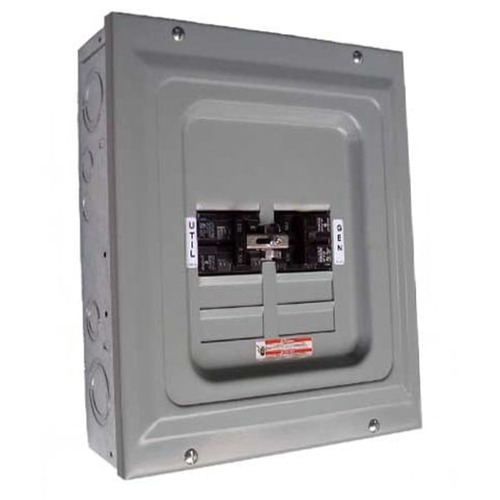

Generac 6334 100 Amp NEMA 1 Single Load Manual Transfer Switch

These Generac 100A Single-Load NEMA 1 Manual Transfer Switch are engineered to ensure a safe and reliable power transfer to a single load or sub-panel when the main power source fails. Ideal for homes and businesses, they enable seamless switching from utility power to a backup generator, helping to maintain essential services and avoid downtime during outages. Their design prioritizes safety by preventing back-feed into the utility lines, protecting the property and utility workers.

Features:

• NEMA 1 enclosure (indoor rated)
• Use as a disconnect panel for a single 120/240V load or to feed a sub panel for multiple loads
• Suitable for service entrance equipment (includes bonding screw and label to convert switch to service entrance rating)

Specifications:

• Model: 6334
• UPC Code: 696471063349
• Generator Main: 100 Amps
• Utility Main: 100 Amps
• Voltage: 125 / 250, 1Ø
• Rated AC Frequency: 60 Hz
• Required Main Breaker in Load Center (provided by installer): 100 Amp, 125 / 250V
• Enclosure: Indoor (NEMA 1)
• Warranty: Two Year Limited

Dimensions and Weight:

• Product L x W x H (in / mm): 11 x 13 x 4 (279 x 330 x 102)
• Product Weight (lb / kg): 10 (4.5)
