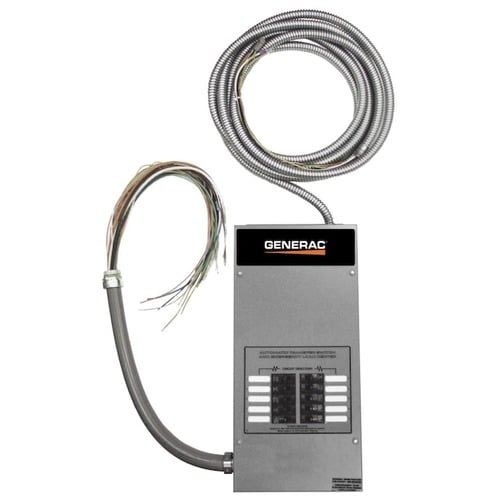

Generac RXG10EZA1 50 Amp 10 Circuit Load Center NEMA 1 Automatic Transfer Switch

The Generac 50A 10 Circuit Load Center Automatic Transfer Switch - NEMA 1 CUL is engineered to provide power exclusively to essential circuits during an emergency. This targeted approach ensures that only critical systems—such as refrigeration units, medical equipment, or security systems—receive power, preserving the generator's capacity and extending its operational lifespan. By focusing on these designated circuits, the generator enhances reliability and efficiency, ensuring that vital functions remain operational without overloading the system. Additionally, the switch comes with a 5-year limited warranty.

The Generac pre-wired switch is designed to operate with 8-24 kW air-cooled generators. This transfer switch has an integrated load center for picking up the emergency circuits. It is especially useful where the main service is large and only a portion of the building load will be served by the generator. It is available with a built-in 10-circuit load center to supply only those circuits that are essential during an emergency. All standard and load center transfer switches are cETLus Listed and suitable for use in optional standby systems (NEC702).

Standard Features:

• All pre-wired switches are housed in a steel NEMA 1 enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is a UL-recognized device, designed for years of service. These switches feature a two foot whip for connecting the transfer switch to the home's main distribution panel. The controller at the generator handles all the timing, sensing and exercising functions. Multi listed for use with 1" standard, tandem, GFCI and AFCI breakers from Siemens, Murray, Eaton, and Square D for the most flexible and cost effective install.

Functions:

All timing sensing functions originate in the generator controller

• Utility Voltage Drop-out: <65%
• Timer to Generator Start: 5 Second Factory Set, Adjustable Between 2 - 1,500 Seconds by a Qualified Dealer*
• Engine Warmup Delay: 5 seconds
• Standby Voltage Sensor: 65% for 5 Seconds
• Utility Voltage Pickup: >80%
• Re-transfer Time Delay: 15 Seconds
• Engine Cooldown Timer: 60 Seconds
• Exerciser: Nexus™: 12 Minutes Weekly and Evolution™: 5 to 12 Minutes Adjustable, Weekly/Bi-weekly/ Monthly
• The Transfer Switch can be Operated Manually Without Power Applied

*When used in conjunction with units utilizing Evolution™ controls.

Specifications:

• Model: RXG10EZA1
• Rated Amperage: 50
• Transfer Method: Automatic
• Service Entrance Rated: No
• Pre-Wired: Yes
• NEMA Rating: 1
• Load Shedding: Built-In
• Circuited: Yes
• Circuited Quantity: 10
• Home Link: No
• Whole House: No
• Single Load: Single Load: No
• Voltage: 120V 240V 1Ø 60 Hz
• Enclosure Type: 1
• Load Shed Integrated: Yes

Dimensions:

• Height: 22.5 in
• Width: 15.4
• Depth: 3.8 in

*Note: The 50 Amp switch is flush mountable. Height and Weight are cover dimensions.

Wire Ranges:

• Conductor Lug: 1/0 - #4
• Neutral Lug: 2/0 - #14
• Ground Lug: 2/0 - #14
