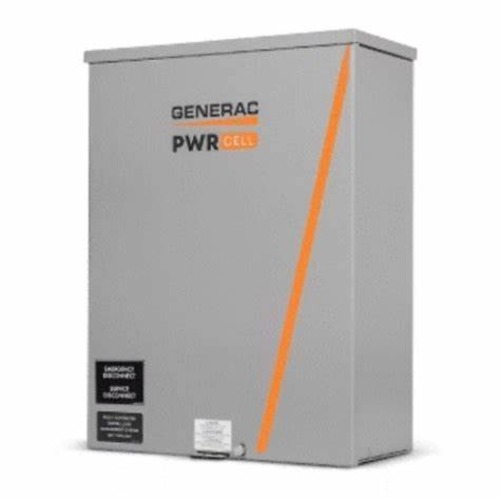

Generac CXSC100A301 PWRcell 100 Amp Non-SE Rated Automatic Transfer Switch

The Generac PWRcell 100A ATS (Generator Integration Enabled) is one of the most flexible systems in the industry and can support a multitude of applications and use cases. Some of those use cases require a non-service entrance-rated transfer switch to achieve the desired functionality. The 100A non-service entrance-rated PWRcell ATS is the perfect solution for these types of installations and also offers the ability to integrate a compatible Generac Home Standby Generator.

Features and Benefits:

• Unlock backup power capability for PWRcell Solar + Battery Storage Systems
• Manage up to four HVAC systems, and an additional eight circuits with optional Smart Management Modules (SMMs)
• Aluminum type 3R enclosure with durable finish for indoor or outdoor installation
• Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service and reliability

*1 PWRcell ATS requires a PWRcell Energy Storage System (ESS) to function and cannot be used for Generator-only applications. Installation with a Generac Home Standby Generator without the presence of a PWRcell ESS will damage this switch and void the warranty

Specifications:

• Amps: 100
• Voltage: 120/240 1Ø
• Load Transition Type (Automatic): Open Transmition
• Enclosure Type: NEMA 3R
• Compliance: UL 1008
• Withstand Rating (AMPS): 10,000
• Lug Range: 1/0 - #14

Dimensions:

• Height (in/mm): 20/508
• Width (in/mm): 14.6/370.8
• Depth (in/mm): 7.09/180.1
• Weight (lbs/kg): 20/9.07
