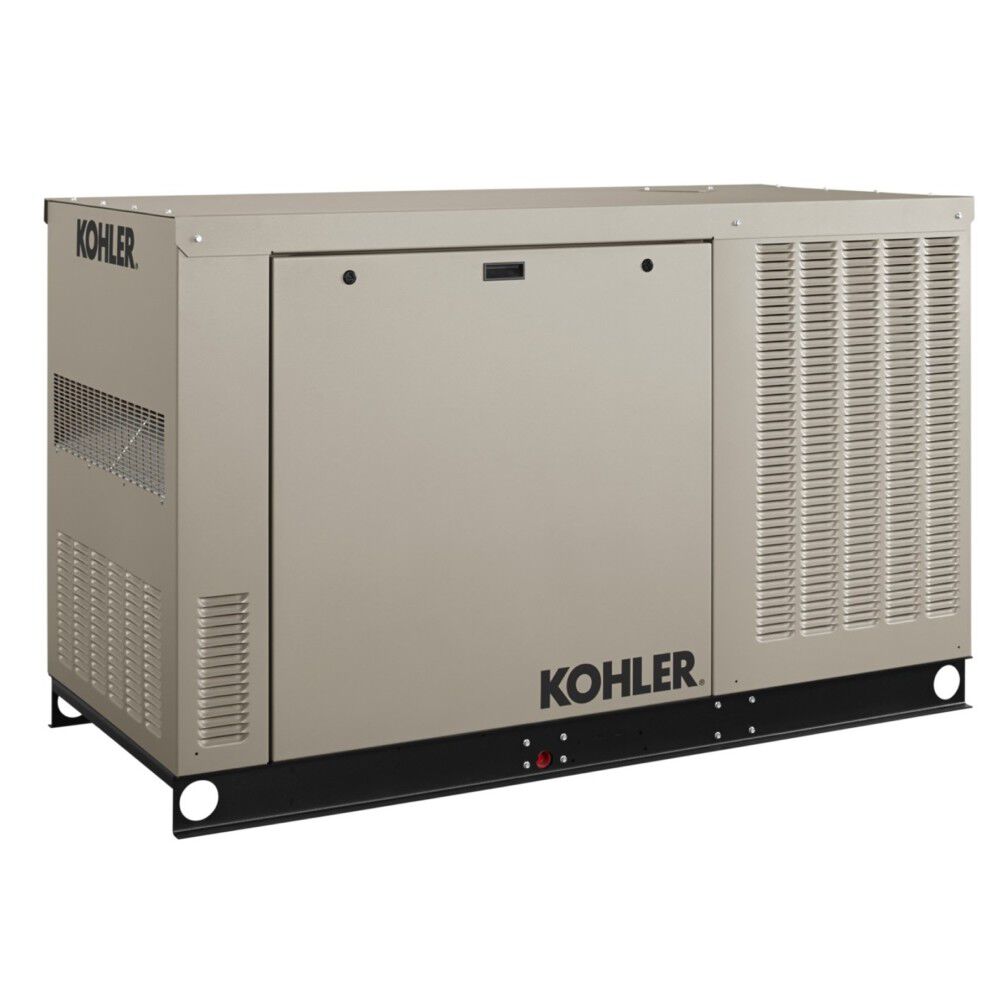

Kohler 38RCLC-QS1 38kW Single Phase Dual Fuel Liquid Cooled Generator
Product Description
Kohler Power 38,000 Watt (38kW) (120 / 240V) Single-Phase Liquid Cooled Dual-Fuel Standby Generator
The 38 kW KOHLER® Standby Home Generator delivers reliable power for large homes or small businesses during outages and storms. Featuring an industrial-grade engine, it keeps essential systems like central air, sump pumps, and computers running. Built for extreme durability, the heavy-duty liquid-cooled engine excels in harsh conditions, while the aluminum powder-coated enclosure withstands severe weather. With a low-noise, neighborhood-friendly design, this generator operates at just 60 dBA at full speed and 52 dBA during exercise. The patented three-fan cooling system reduces noise levels for quiet operation. It’s powered by a Kohler KG2204T engine, offering 74kVA peak motor-starting capacity and premium power quality. Running on natural gas or liquid propane (LPG), this generator provides flexibility and easy fuel switching. The 38RCLC is backed by a 5-year or 2,000-hour warranty, and it’s compatible with OnCue® Plus for remote monitoring. Compact, efficient, and dependable, it’s perfect for your standby home generator needs.
Features
- Powered by Kohler KG2204T industrial-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
- Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances
- Extraordinary peak motor-starting capacity, with 38RCLB at 74kVA at 240V
- Powerful operation on either natural gas or liquid propane (LPG); the 38RCLC provides 158 amps on LPG and natural gas
- This generator is a 49-state-rated unit and is compliant for use in all states within the United States except California. Before purchasing or operating this generator, check all local city, county, or parish regulations and requirements that may have precedence over their State regulations.
- From 23 feet, the noise level is 62 dBA
- Powered by a Kohler Residential Powertrain KG2204T engine and connects directly to your propane or natural gas system, never needing to be refueled
- 38,000 running watts of power
Overview:
- Product Category: Home Standby Generator
- Generator Features: Low Oil Alert/Shutdown
- Product Weight: 1370 lbs
- Length: 74"
- Width: 32-7/8"
- Height: 46"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 38,000 Watts
- Fuel Type: Liquid Propane, Natural Gas
- NG Power Capacity: 38,000 Watts
- LP Power Capacity: 38,000 Watts
- NG Fuel Consumption @ 50% Load: 327 ft3/hr
- NG Fuel Consumption @ 100% Load: 492 ft3/hr
- LP Fuel Consumption @ 50% Load: 3 gallons/hr
- LP Fuel Consumption @ 100% Load: 6 gallons/hr
- Amperage: 158A
- Decibel Rating @ 7m: 61 dB
- Enclosure Material: Aluminum
- Mounting Pad: Concrete (Not Included)
- Cooling Type: Liquid Cooled
Engine:
- Engine Brand: Kohler
- Starting System: 12v Auto Start
- Cubic Capacity: 2200 CC
- Horsepower: 63.9 (NG) / 64.1 (LP)
- RPM: 1800 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Approved for commercial use
- Warranty: 5 Year Commercial Engine and 5 Year Residential Engine
Plug Type:
(1) NEMA 5-20R - GFCI
Dimensions and Measurements
|
Height
|
46 in. |
|
Length
|
74 in. |
|
Product Weight
|
1370 lbs. |
|
Width
|
32.9 in. |
Included Components
|
Automatic Transfer Switch Included
|
No |
|
Mounting Pad
|
Concrete (Not Included) |
Characteristics and Features
|
Cooling Type
|
Liquid Cooled |
|
Enclosure Material
|
Aluminum |
|
Engine Brand
|
Kohler |
|
Generator Features
|
Low Oil Alert/Shutdown |
Electrical and Operational Information
|
Alternator
|
Brushless |
|
Amperage
|
158 |
|
Cubic Capacity
|
2200 cc |
|
Decibel Rating @ 7m
|
61 |
|
Electrical Phases
|
1 |
|
Frequency
|
60 Hertz |
|
Fuel Type
|
Liquid Propane, Natural Gas |
|
Horsepower
|
63.9, 64.1 |
|
LP Fuel Consumption @ 100% Load
|
5.6 GPH |
|
LP Fuel Consumption @ 50% Load
|
3.2 GPH |
|
LP Power Capacity
|
38000 |
|
NG Fuel Consumption @ 100% Load
|
492 CFH |
|
NG Fuel Consumption @ 50% Load
|
327 CFH |
|
NG Power Capacity
|
38000 |
|
Plug Type
|
(1) NEMA 5-20R - GFCI |
|
RPM
|
1800 |
|
Running Wattage
|
38000 |
|
Starting System
|
12v Auto Start |
|
Voltage
|
120, 240 |
Warranty and Product Information
|
Approved for Commercial Use
|
Yes |
|
EPA Compliant
|
Yes |
|
Manufacturer Warranty
|
5 Year Commercial Engine, 5 Year Residential Engine |
|
SCAQMD Compliant
|
No |
