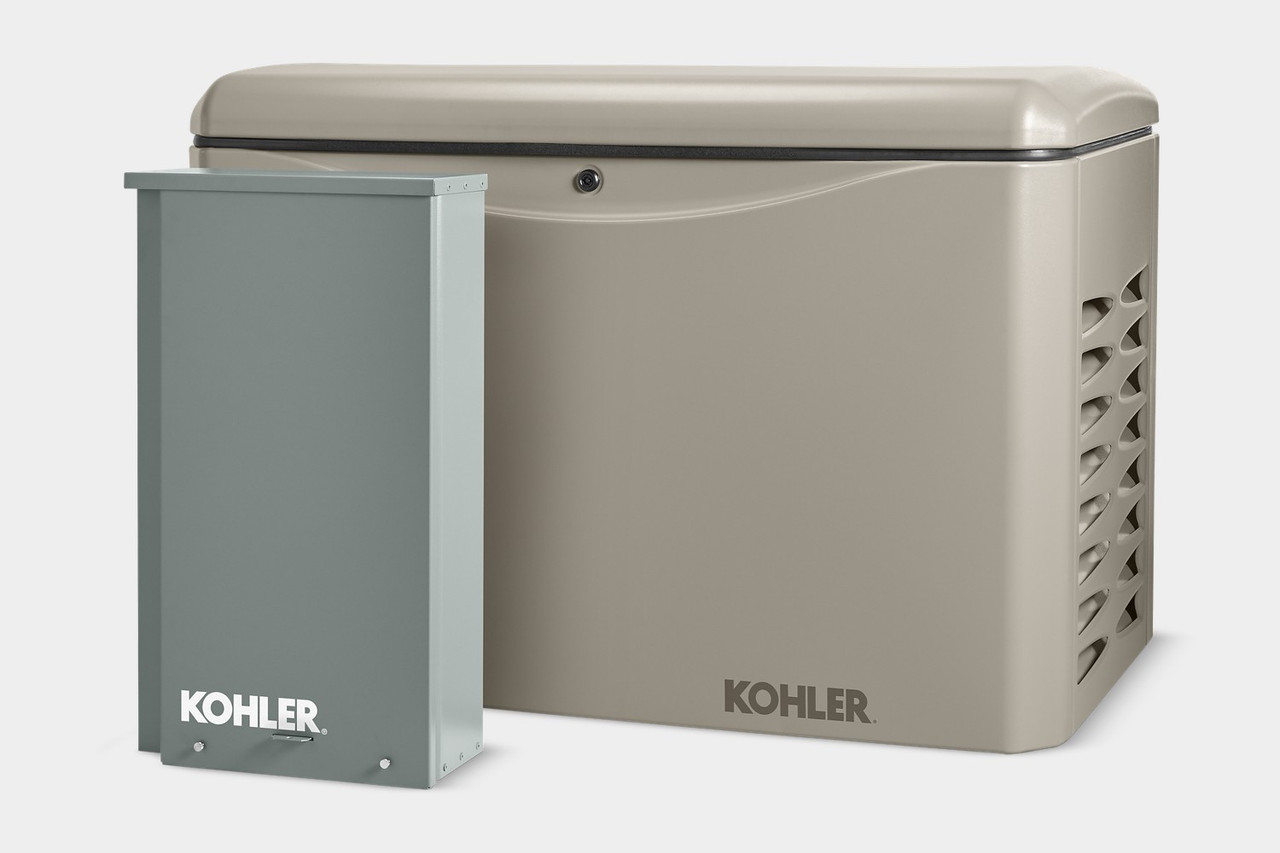

Kohler 14 kW (120 / 240V) Single-Phase Air Cooled Dual-Fuel Standby Generator with 200A SE Transfer Switch

Kohler 14RCAL-200SELS is a user-friendly air-cooled model with a heavy-duty, commercial-grade engine. It keeps the business running in case of a utility power failure. Continue to run heating, cooling, and the security systems when the storm brings down power lines.

During an emergency, the 200-amp automatic transfer switch offers the comfort and convenience of generator power without the hassle of manual operation.

It is designed for both on-grid and off-the-grid applications. Use it at home or the work site as a backup source of power. In only 10 seconds, this Kohler generator restores power to a 5-ton (60,000 BTU) air conditioner, major appliances, and electronics automatically.

Users can switch between natural gas and LPG fuels easily. Exceptional power quality protects all valuable electronics at home and work. With less than 5% THD, this generator is ideal for use with modern computers, laptops, cell phones, and tablets.

RDC2 controller has a 2-line backlit LCD screen display that allows you to check the status of the unit and system settings. OnCue Plus Generator Management System allows you to get real-time status updates on your generator from an iPhone®, iPad®, Android™ device, PC or Mac®.

This generator has extraordinary motor-starting capacity at 33kVA at 240V. Kohler 14RCAL -200SELS can be installed outdoors only. You can install it 18” from a structure. For storm-prone areas, use a 4” concrete mounting pad for installation. The model is shipped free of cost and comes with free technical support for life.

Features:

This Kohler 14kW 60 Hz generator is very hard working. It runs on a reliable Kohler CH740 4-Cycle, 20.5 HP, V-2 engine with maximum 3600 RPM. The Kohler Command PRO OHV engine is designed for tough commercial applications. It has hydraulic valve lifters that eliminate the need for expensive valve adjustments. This dual fuel model delivers exceptional digital voltage and frequency.

• Kohler 14RCAL-200SELS comes with 200 amp service entrance-rated Model RXT ATS with combined interface/ load management board and corrosion-resistant NEMA 3R aluminum enclosure.
• Includes RXT 200-amp outdoor-rated, service entrance rated automatic transfer switch
• PowerBoost voltage regulation system ensures reliable motor starting and provides instant response to load changes.
• The model is available in both single-phase and 3-phase. Single-phase voltage is 120/240, while 3-Phase voltage is 120/208, 120/240, and 277/480.
• The aluminum sound enclosure and a critical silencer ensure sound attenuation.
• Hinged, locking roof of the enclosure allows easy access to the generator set controller when required. This makes maintenance and service easier.
• DVR guards all sensitive electronics against harmonic distortion and unsteady power.
• Compatible with PowerSync Automatic Paralleling Module (APM), programmable interface module (PIM).
• This model is easy to install. The sturdy aluminum base can be mounted on gravel or a concrete mounting pad. Flat bottom facilitates mounting and leveling and prevents it from sinking into the ground.
• Certifications and listings include cUL, UL 2200, CSA and EPA.
• This model is backed by 5-year/2000 hour limited warranty for on-grid applications and 18 month/1000 hour limited warranty for off-grid applications.
