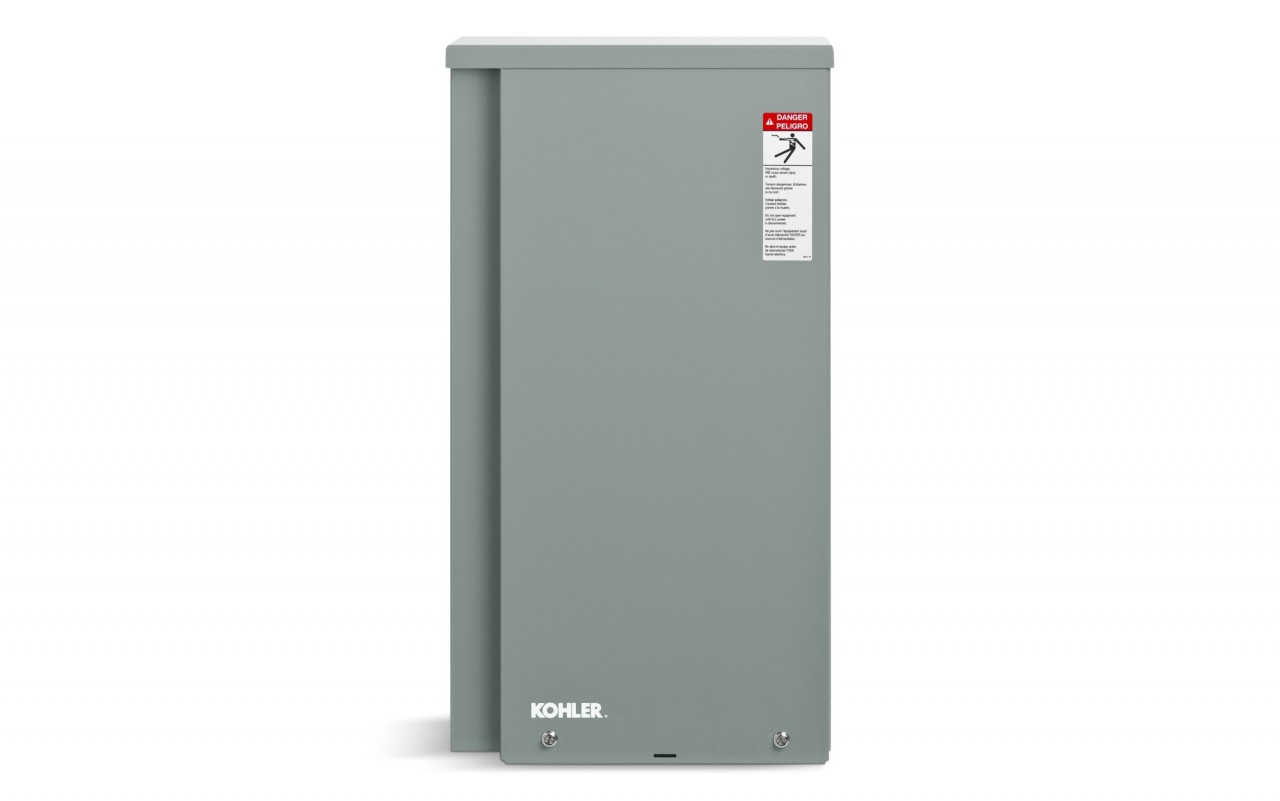

Kohler RXT-JFNC-0200A-QS7 200 Amp 240V Nema 3R Automatic Transfer Switch

200 Amp   |  120/240 Volts   |  NEMA 3R Indoor/Outdoor  |   Load Shed Circuit

The Kohler 200 Amp Transfer Switch connects a Kohler generator to your home's main circuit breaker panel. Designed for use only with Kohler generators equipped with the RDC2 generator set/transfer switch controller. The RXT Transfer Switch for 200 Amps manages the source of power to your whole house. Under generator power, it also manages which prioritized heavy loads have power and which do not. The NEMA 3R aluminum enclosure is corrosion resistant for indoor or outdoor installation.

The Kohler generator's RDC2 controller continuously monitors the utility service. When it fails, the controller starts the generator and signals the Kohler 200 Amp transfer switch to change the power source from utility to generator. When the utility service returns, the RDC2 controller signals the ATS to switch back to utility service. The generator begins its shutdown cycle.

Features:

• 200 Amp, Two Pole, Open transition transfer switch.
• Use only with Kohler Generators equipped with a RDC2 Generator Set/Transfer Switch controller.
• For 120/240-Volt single-phase two-pole installations
• NEMA 3R Rated corrosion-resistant aluminum enclosure for indoor or outdoor installation.
• Accepts a padlock to prevent tampering
• Load control board allows a 5-minute startup delay for selected loads, such as an air conditioner
• Variable speed weekly exercise cycle and self-diagnostic test

Compatible with the 14RCA, 20RCA, and 26RCA Generators

Specifications
