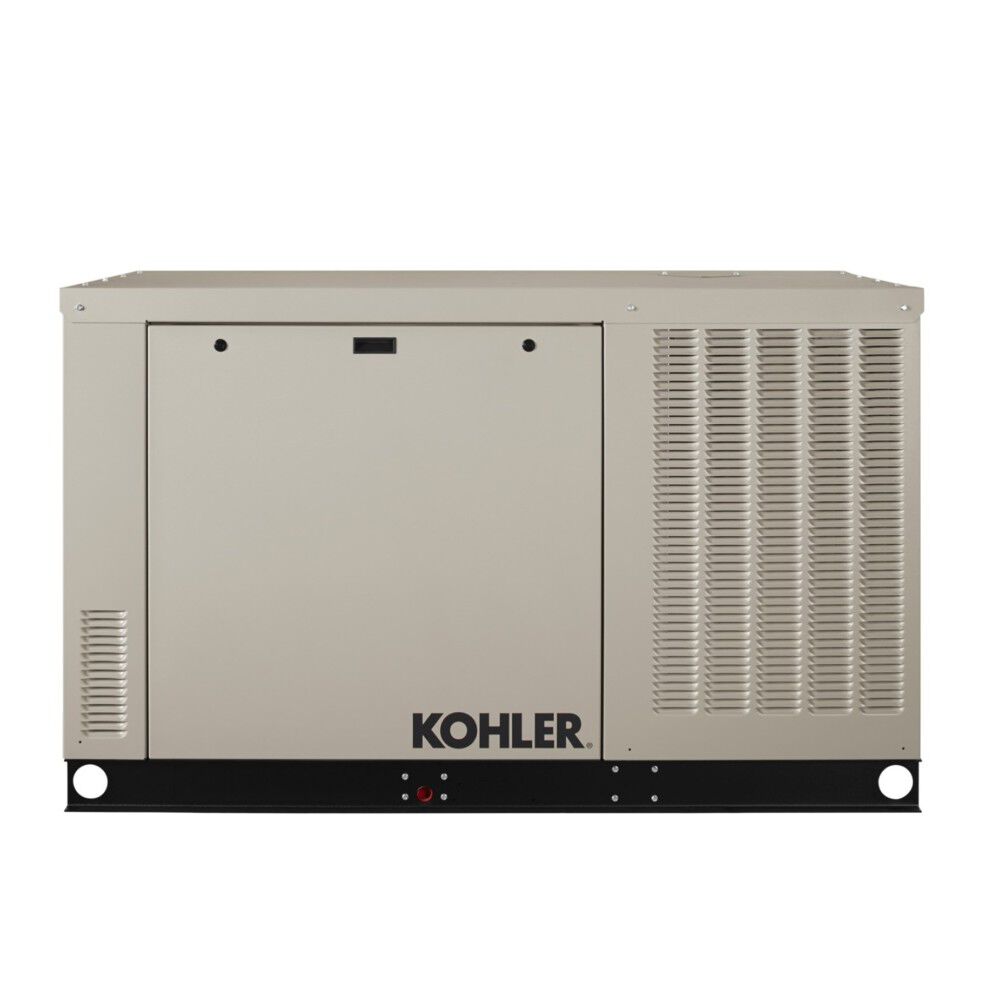

Kohler 24RCLA-QS1 24kW Dual Fuel Liquid Cooled Standby Generator
Product Description
Kohler Power 24,000 Watt (24kW) Dual Fuel 1-Phase Liquid Cooled Standby Generator (120 / 240V) 50-State
The KOHLER® standby home generator with PowerBoost™ technology ensures reliable backup power, even for large loads like central air conditioners, without affecting other appliances. Offering an extraordinary peak motor-starting capacity of 14RCA at 33kVA at 240V, this standby home generator provides premium power quality with exceptional voltage and frequency regulation, protecting your smart appliances and electronics during power outages. Powered by the KOHLER Command PRO® engine, designed for tough commercial applications, this generator operates at 1800 RPM, the standard for air-cooled generators. Compatible with OnCue® Plus and Wireless Generator Management Systems, it allows easy monitoring and management of your system. The RDC2 controller manages both the generator and the transfer switch, ensuring seamless performance. With a quiet, neighborhood-friendly operation and stylish, wind-rated aluminum enclosure, this standby home generator can be installed just 18” from your home. It runs on either natural gas or liquid propane (LPG), with easy switching between fuels, offering peace of mind and reliable backup power when you need it most.
Features
- Powered by Kohler KG2204 industrial-grade engine with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed 1800 rpm
- Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances
- Extraordinary peak motor-starting capacity, with 24RCL at 37kVA at 240V
- Powerful operation on either natural gas or liquid propane (LPG); the 24RCLA provides 100 amps on LPG and 87 amps on natural gas
- This generator is a 50-state-rated unit that meets emissions standards set by the California Air Resources Board (CARB). Before purchasing or operating this generator, check all local city, county, or parish regulations and requirements that may have precedence over their State regulations.
- From 23 feet, the noise level is 61 dBA
- Powered by a Kohler KG2204 engine and connects directly to your propane or natural gas system, never needing to be refueled
- 24,000 running watts of power
Overview:
- Product Category: Home Standby Generator
- Generator Features: Low Oil Alert/Shutdown
- Product Weight: 1260 lbs
- Length: 74"
- Width: 32-7/8"
- Height: 46"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 24,000 Watts
- Fuel Type: Liquid Propane, Natural Gas
- NG Power Capacity: 21,000 Watts
- LP Power Capacity: 24,000 Watts
- NG Fuel Consumption @ 50% Load: 199 ft3/hr
- NG Fuel Consumption @ 100% Load: 301 ft3/hr
- LP Fuel Consumption @ 50% Load: 2 gallons/hr
- LP Fuel Consumption @ 100% Load: 3 gallons/hr
- Amperage: 100A
- Decibel Rating @ 7m: 61 dB
- Enclosure Material: Aluminum
- Mounting Pad: Concrete (Not Included)
- Cooling Type: Liquid Cooled
Engine:
- Engine Brand: Kohler
- Starting System: 12v Auto Start
- Cubic Capacity: 2200 CC
- Horsepower: 36 (NG) / 40 (LP)
- RPM: 1800 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Approved for commercial use
- Warranty: 5 Year Commercial Engine and 5 Year Residential Engine
Plug Type:
(1) NEMA 5-20R - GFCI
Dimensions and Measurements
|
Height
|
46 in. |
|
Length
|
74 in. |
|
Product Weight
|
1260 lbs. |
|
Width
|
32.9 in. |
Included Components
|
Automatic Transfer Switch Included
|
No |
|
Mounting Pad
|
Concrete (Not Included) |
Characteristics and Features
|
Cooling Type
|
Liquid Cooled |
|
Enclosure Material
|
Aluminum |
|
Engine Brand
|
Kohler |
|
Generator Features
|
Low Oil Alert/Shutdown |
Electrical and Operational Information
|
Alternator
|
Brushless |
|
Amperage
|
100 |
|
Cubic Capacity
|
2200 cc |
|
Decibel Rating @ 7m
|
61 |
|
Electrical Phases
|
1 |
|
Frequency
|
60 Hertz |
|
Fuel Type
|
Liquid Propane, Natural Gas |
|
Horsepower
|
36, 40 |
|
LP Fuel Consumption @ 100% Load
|
3.2 GPH |
|
LP Fuel Consumption @ 50% Load
|
2.4 GPH |
|
LP Power Capacity
|
24000 |
|
NG Fuel Consumption @ 100% Load
|
301 CFH |
|
NG Fuel Consumption @ 50% Load
|
199 CFH |
|
NG Power Capacity
|
21000 |
|
Plug Type
|
(1) NEMA 5-20R - GFCI |
|
RPM
|
1800 |
|
Running Wattage
|
24000 |
|
Starting System
|
12v Auto Start |
|
Voltage
|
120, 240 |
Warranty and Product Information
|
Approved for Commercial Use
|
Yes |
|
EPA Compliant
|
Yes |
|
Manufacturer Warranty
|
5 Year Commercial Engine, 5 Year Residential Engine |
|
SCAQMD Compliant
|
No |
