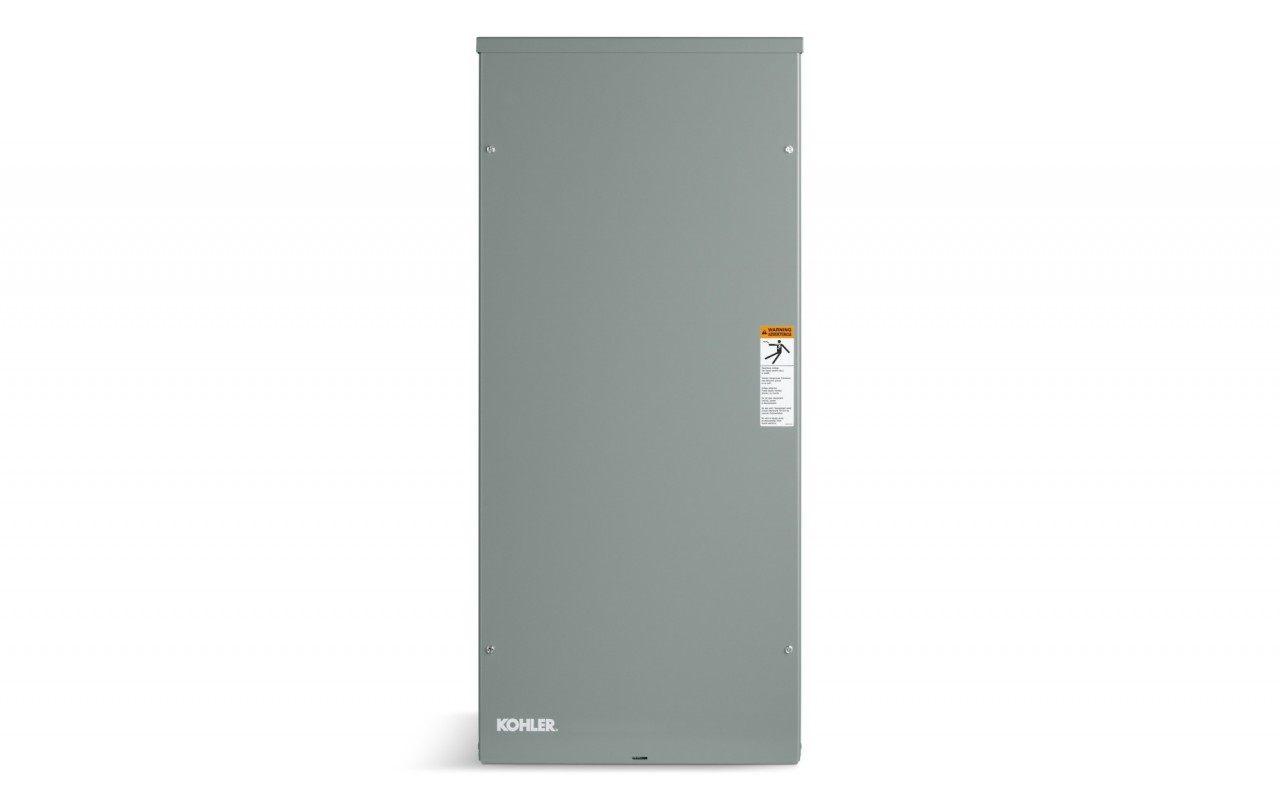

Kohler RDT-CFNC-0200B-QS7 200 Amp 240V Nema 3R Automatic Transfer Switch with 24 Circuit Load Center

200-Amp  |   120/240 Volts Single Phase  |   24-Circuit Load Center  |   UL-1008 & UL-508  |   NEMA 3R Outdoor Enclosure

The RDT 200 Amp Transfer Switch is a 2-Pole, 3-Wire (solid neutral) open transition transfer switch rated for 200 Amps at 120/240 Volts. The NEMA 3R aluminum enclosure is suitable for indoor or outdoor installation. 100 Percent Equipment Rated without derating. The 200 Amp Automatic Transfer Switch Contactor is electrically and mechanically interlocked with a double-throw interlocked design.

Integrated 24-Circuit Load Center

The Kohler 200-Amp Transfer Switch has a MPAC 500 Controller

MPAC 500 Controller Features

• User Friendly Interface
• Source available and contactor position indicators
• LED Indicators for faults
• Engine Start Contact starts generator engine
• Load Control Contact adds 5 minute delay to selected loads
• Test Button
• Weekly 20-Minute Generator Exercise with or without load
• Single Phase Voltage Sense on both Sources
• Line-to-Line Frequency sense
• Fixed Time Delays

Features

• NEMA 3R Indoor/Outdoor Rated Aluminum Enclosure
• 2 Pole Single Phase Open Transition Switch
• 24 Circuit Load Center without Circuit Breakers
• UL-1008, UL-508 Listed
• Engine Start Time Delay
• Engine Cooldown Delay
• 20 Minute Weekly Exercise
• Electrically & Mechanically Interlocked Contactor
• Manual Contactor Operation for Maintenance
• Utility and Generator Source Available Indicators

Specifications
