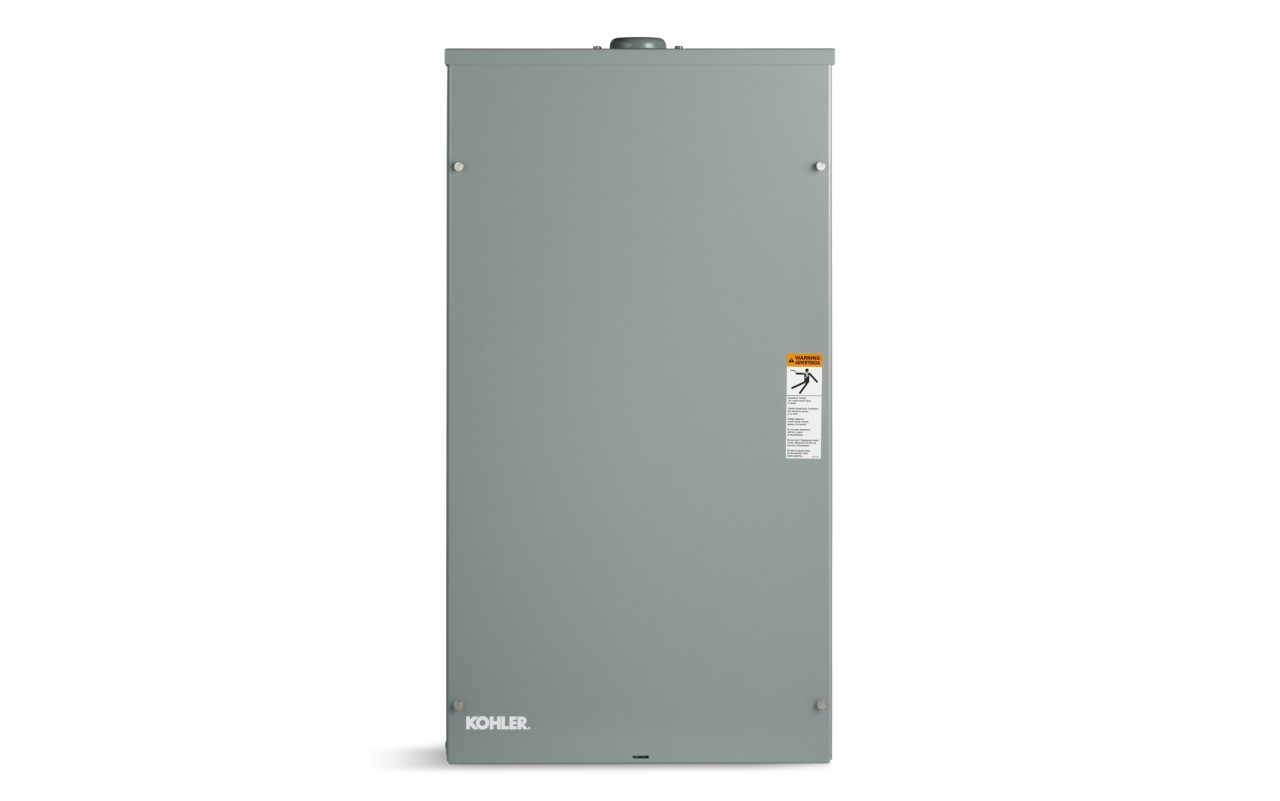

Kohler RDT-CFNC-200ASEQS4 200 Amp 240V SE Rated Nema 3R Automatic Transfer Switch

  • Image 1
  • Image 2
  • Image 3
Price:
US $510.00
SKU:
RDT-CFNC-200ASEQS4
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Kohler RDT-CFNC-200ASEQS4 200 Amp 240V SE Rated Nema 3R Automatic Transfer Switch

200-Amp  |   120/240 Volts Single Phase  |   Service Entrance Rated   |  UL-1008 & UL-508

NEMA 3R Indoor/Outdoor Enclosure

The RDT 200 Amp Automatic Transfer Switch is a 2-Pole, 3-Wire (solid neutral) open transition transfer switch rated for 200 Amps at 120/240 Volts. The NEMA 3R Aluminum enclosure is suitable for indoor or outdoor installation. 100 Percent Equipment Rated without derating. The 200 Amp Transfer Switch Contactor is electrically and mechanically interlocked with a double-throw interlocked design.

The Service Entrance Rated Switch installs after the utility meter and before any other electrical equipment in the building. It serves as the main disconnecting means for the building's electrical service.

The 200-Amp Automatic Transfer Switch has a MPAC 500 Controller

MPAC 500 Controller Features

  • User Friendly Interface
  • Source available and contactor position indicators
  • LED Indicators for faults
  • Engine Start Contact starts generator engine
  • Load Control Contact adds 5 minute delay to selected loads
  • Test Button
  • Weekly 20-Minute Generator Exercise with or without load
  • Single Phase Voltage Sense on both Sources
  • Line-to-Line Frequency sense
  • Fixed Time Delays

Features

  • NEMA 3R Indoor/Outdoor Aluminum Enclosure
  • 2 Pole Single Phase Open Transition Switch
  • Service Entrance Rated Disconnect
  • UL-1008, UL-508 Listed
  • Engine Start Time Delay
  • Engine Cooldown Delay
  • 20 Minute Weekly Exercise
  • Electrically & Mechanically Interlocked Contactor
  • Manual Contactor Operation for Maintenance
  • Utility and Generator Source Available Indicators

Specifications

Model

Model Number RDT-CFNC-200ASEQS4

Manufacturer Kohler Generators

Made In USA Yes

Rated Amps 200 Amps

Voltage 120/240 Volts

Enclosure NEMA 3R Aluminum

UL Listed UL-1008, UL-508

Type Automatic Transfer Switch

Series Name RDT

Transfer Switch Model RDT-CFNC-200ASEQS4

Features

Weight 26 Pounds

Dimensions 33.8H x 18.6W x 6.4D Inches

Warranty Information

Consumer Warranty Kohler 5-Year Limited Warranty

Commercial Warranty Kohler 5-Year Limited Warranty

Transfer Switches

Transfer Switch Model RDT-CFNC-200ASEQS4

Transfer Switch Amps 200 Amps

Transfer Switch Circuits Service Entrance Rated Switch

Ats Poles 2 Poles

Transfer Switch Weight 26 Pounds
